High-Speed VMQ-2422C Measuring System With Color CCD Camera

High-Speed VMQ-2422C Measuring System With Color CCD Camera

Model		MQ-2422C
Stage	Glass Table Dimension(mm)	250*230
	Stroke(XYZ, mm)	140120100
	Load Capacity	approx. 15 kg

Spu:

1601345192895

Introduction

Product Description

One Key Measuring System VMQ Series

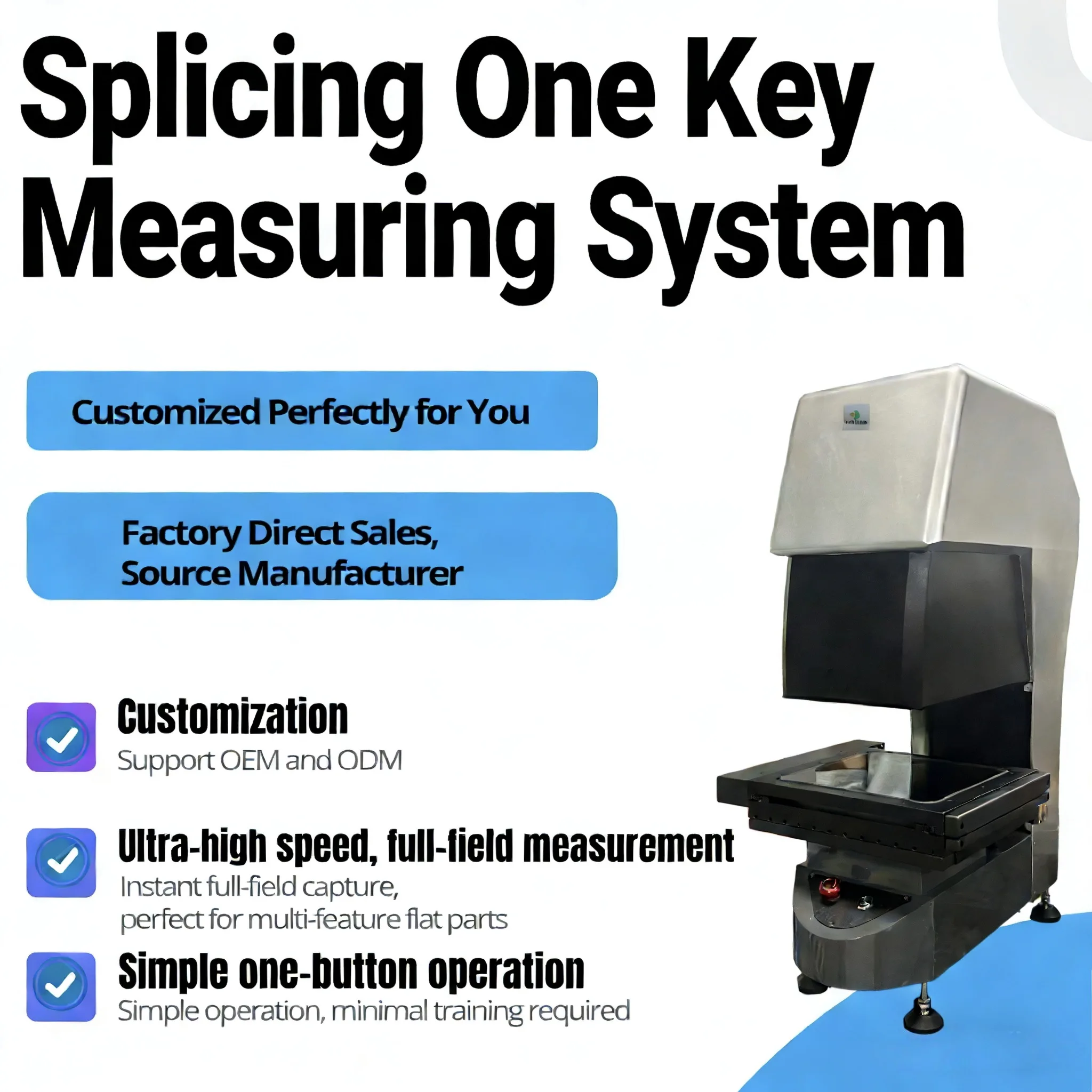

High-Speed VMQ-2422C Measuring System With Color CCD Camera details

I. Usage

VMQ Series is One Key Video Measuring System developed by DG-YIHUI.

It has been widely used in machinery, electronics, aerospace, automotive, Mould, and other industries for precision measurement.
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, etc.
3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.

High-Speed VMQ-2422C Measuring System With Color CCD Camera factory

Specification

Model		MQ-2422C
Stage	Glass Table Dimension(mm)	250*230
	Stroke(XYZ, mm)	140120100
	Load Capacity	approx. 15 kg
Weight (kg)		60 kg
Dimension (LWH, mm)		390590850
Measuring Targeting System (Standard Accessories)		Camera: 6MP Color Camera
		Zoom Lens: Telecentric Lens
		Magnification of lens: 2.8X FOV: 100mm
		Magnification of lens: 11.1X FOV: 25mm
Z Stroke(mm)		120
Min. Resolution		1 μm
Accuracy E1*		FOV: 25mm Ex, y ≤ (3.0+L/100) μm
		FOV: 100mm Ex, y ≤ (5.0+L/100) μm
Repeatability Accuracy E2*		2 um
Illumination		Transmission light, surface light adopt LED, brightness adjustable
Power		110/220V(AC), 50/60HZ 30W

Software

Metrology Software INTELL Vue™

INTELL Vue is a professional metrology software for One Key Measuring Systems developed by DG-YIHUI.
With user-friendly UI, powerful functions, it allows the users to achieve fast and precise geometry measurement.
1. 2-dimensional measurement: measure height, width, length, both sides of the angle, the cone angle, the diameter of the cylinder, chamfering, straightness, roundness, cylindricity, perpendicularity, parallelism, etc.
2. Max.and Min. Limit: can set max. and min. limits, when the actual size of the product is out of range, the corresponding measurement data will have warning in red background.
3. Reverse engineering: software draws measurement graphics, can have real direct entry in AutoCAD, also can be saved as DXF, dwg. files (can be a fast scanner, more than two times faster than general software speed).
4. Picture output: measurement or observation results can be saved as pictures in various format like BMP, Jpg.
5.Real-time sub-pixel to find the point: the first sub-pixels, advanced image processing technology into video measurement industry, greatly improves the measurement accuracy and measurement efficiency of a pixel, compared to similar software, saves at least 3/5 time, improve the accuracy of more than 2 times (in the same optical magnification).

6. Vector drawing functions: the image or fonts can be zoomed in or out sleeplessly.

7. Maps measurements: can capture and form a complete picture of large workpiece, and can directly make measurement on the graph.
8. The command line: directly form the command line, enter the coordinate information to generate the point, line, circle, arc, to meet the special needs of virtual measurement.
9. Line position tolerance: roundness, straightness, parallelism, perpendicularity, concentricity, etc.
10. Dimensioning function: radius, diameter, angular dimensions, linear dimensions, alignment annotation, text annotation, coordinate label.
11. Automatic measurement functions: automatically find a straight line, multi-zone automatic find a straight line, cl2ck circle marquee round, round multi-zone automatic arc.
12. Report function: measurement results can be directly converted to EXCEL, WORD, CAD.
13. Language: support Chinese, English, Korean and Japanese, Russian.

Packing & Delivery

Company Profile

High-Speed VMQ-2422C Measuring System With Color CCD Camera manufacture

Dongguan Yihui Optoelectronics Technology Co., Ltd.

Established in 2003, has 22-year experience in manufacturing optical instrument and 17-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries.

Until 2022, our products have been exporting to 54 countries over the world, and we have formal distributors in TAIWAN, KOREA,IRAN, GERMANY and MALAYSIA.Customers from all over the world have been satisfied with our low cost, high efficiency, high quality metrology solutions.

Welcome to contact us for cooperation.

High-Speed VMQ-2422C Measuring System With Color CCD Camera supplier

Certifications

FAQ

Q: We don't know much about the machine but we need it, how to decide which model is the best?
A: Please send inquiry to our Sales telling what you need the machine to do.And then our team will work out best solutions for you by sending catalogues, demonstration video or testing of your sample.
Q: We want to protect our payment better, T/T is not accepted.Is there better way for business?
A: L/C, Paypal, Alipay etc. are available, we have many options for safe payment.
Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service.Usually we will send our engineer for overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accomodation.If spot service is not feasible, we will arrange online instruction of installation and online training by means of e-mail,phone,remote control, meeting software etc.
