High Precision Fast Measurement One Key One Button Video Measuring Machine

High Precision Fast Measurement One Key One Button Video Measuring Machine

Code		4178003
Model		OFT-86

Spu:

1601633763322

Introduction

Product Description

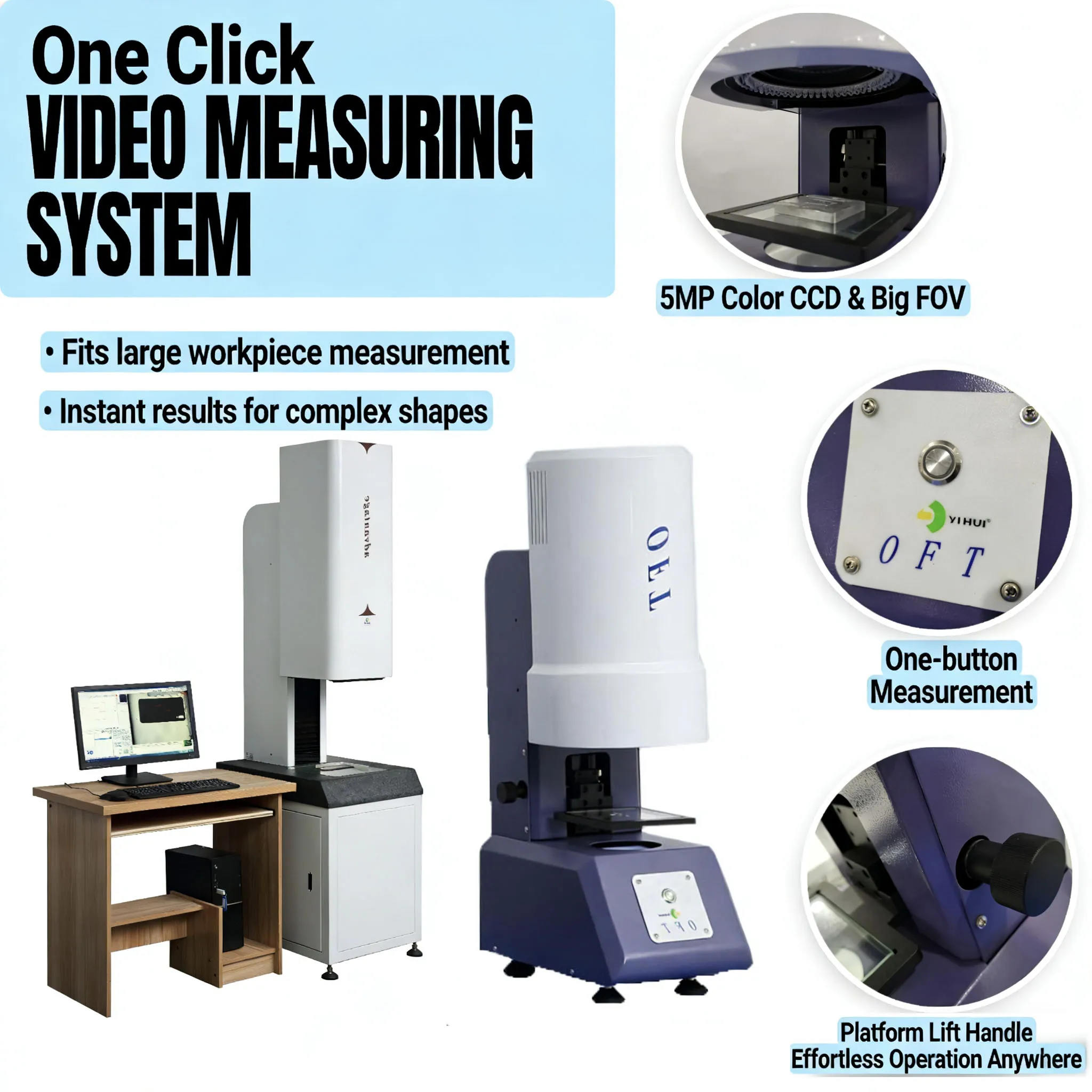

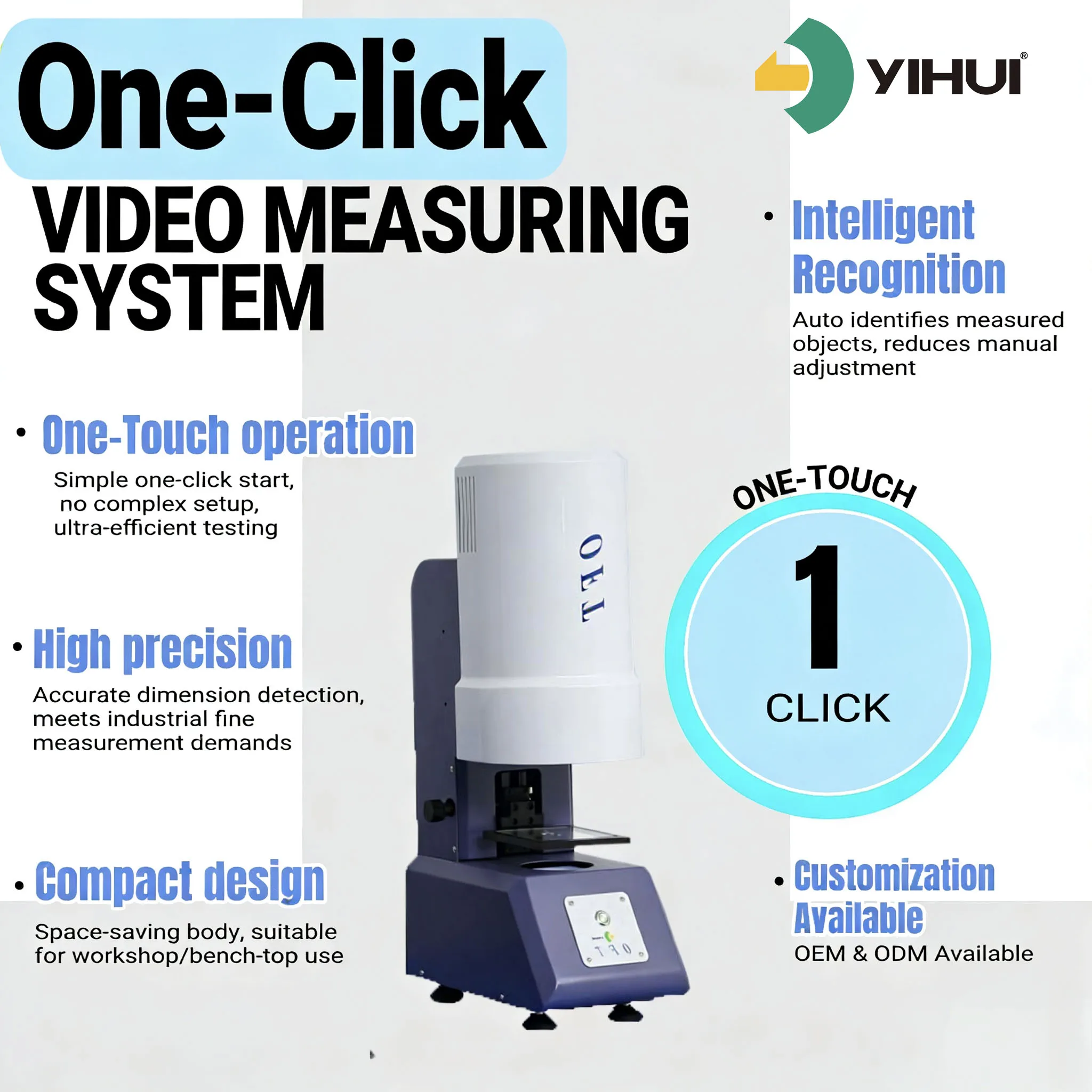

One Key Measuring System OFT Series

High Precision Fast Measurement One Key One Button Video Measuring Machine supplier

I. Usage

OFT Series is a One Key Video Measuring System developed by DG-YIHUI.
It has been widely used in machinery, electronics, aerospace, automotive, Mould, and other industries for precision measurement.
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning
function.
2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness,
flatness, perpendicularity, circular degree, coaxiality, etc.
3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line
structure, a round structure and structural point of view.

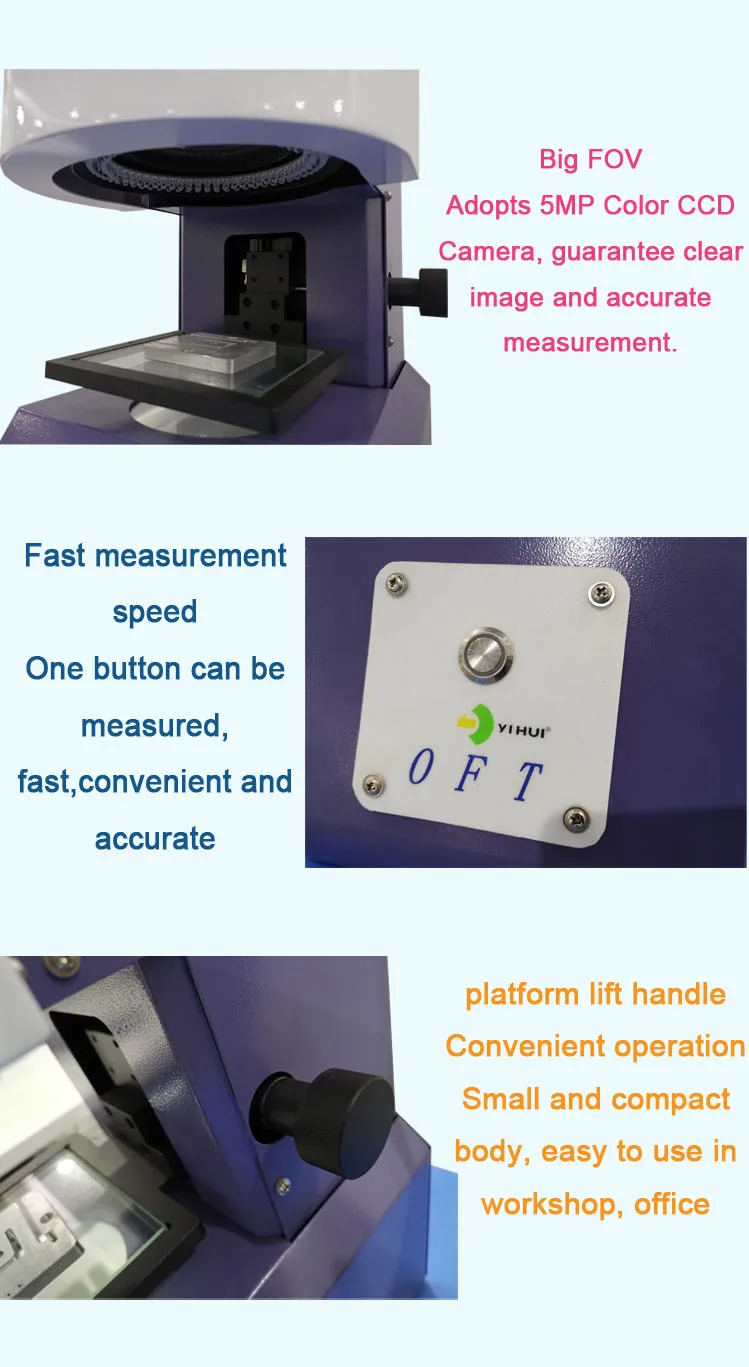

II. Features

1. It adopts 5MP Color CCD Camera, guarantee clear image and accurate measurement.
2. Big FOV, fast measurement speed. i.e. 3D composite panel all 34 image dimensions measurement completed 1.2 seconds / film, 3D glass all 10 image dimensions measurement completed 0.34 seconds / film.
3. Small and compact body, easy to use in workshop, office.

Structure

Specification

Code		4178003
Model		OFT-86
Table	Glass Table Dimension(mm)	120*120

	XY Stroke (mm)	80*60
	Load Capacity	approx. 5 kg
Weight (kg)		20kg
Dimension (LWH, unit:mm)		210362745
Measuring Targeting System (Standard Accessories)		Camera: 5MP Color CCD Camera
		Zoom Lens: Telecentric Lens
		Magnification of lens: 0.09 X WD: 120mm
		Video Magnification: 7.19X FOV: 80*60mm
		Resolution: 1 μm

Metrology Software		YH-Q™
Z-axis Stroke		70mm
Accuracy E1*		Ex, y ≤ (4.5+L/100) μm
Accuracy E2*		Exy ≤ (5.0+L/100) μm
Illumination		Transmission light, surface light adopt LED, brightness adjustable
Power		110/220V(AC)，50/60HZ 30W

Product packaging

High Precision Fast Measurement One Key One Button Video Measuring Machine details

Company Profile

High Precision Fast Measurement One Key One Button Video Measuring Machine manufacture

Dongguan Yihui Optoelectronics Technology Co., Ltd.

Established in 2003, has 22-year experience in manufacturing optical instrument and 17-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries.

High Precision Fast Measurement One Key One Button Video Measuring Machine factory

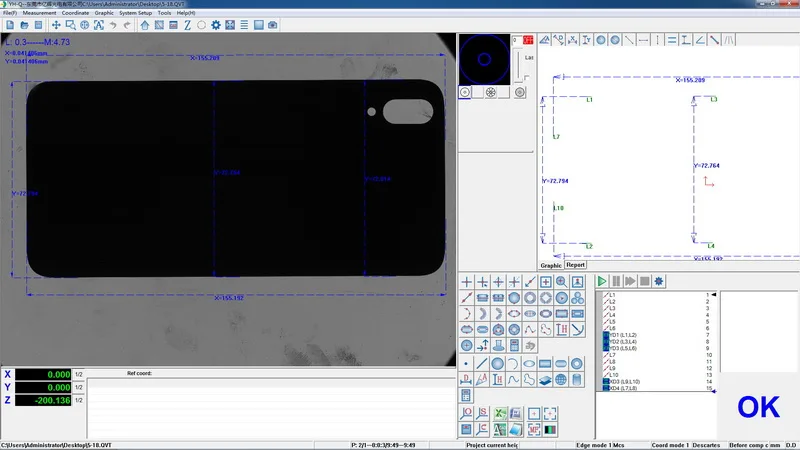

Software

YH-Q

1.1. 2-dimensional measurement: measure height, width, length, both sides of the angle, the cone angle, the diameter of the cylinder, chamfering, straightness, roundness, cylindricity, perpendicularity, parallelism, etc.
2. Max.and Min. Limit: can set max. and min. limits, when the actual size of the product is out of range, the corressponding measurement data will have warning in red background.
3. Reverse engineering: software draws measurement graphics, can have real direct entry in AutoCAD, also can be saved as DXF,dwg. files (can be a fast scanner, more than two times faster than general software speed).
4. Picture output: measurement or observation results can be saved as pictures in various format like BMP, Jpg.
5. Real-time sub-pixel to find the point: the first sub-pixels, advanced image processing technology into video measurement industry, greatly improves the measurement accuracy and measurement efficiency of a pixel, compared to similar software, saves at least 3/5 time, improve the accuracy of more than 2 times (in the same optical magnification).
6. Vector drawing functions: the image or fonts can be zoomed in or out steplessly.
7. Maps measurements: can capture and form a complete picture of large workpiece, and can directly make measurement on the graph.
8. The command line: directly form the command line, enter the coordinate information to generate the point, line, circle,arc, to meet the special needs of virtual measurement.
9. Line position tolerance: roundness, straightness, parallelism, perpendicularity, concentricity, etc.
10. Dimensioning function: radius, diameter, angular dimensions, linear dimensions, alignment annotation, text annotation,coordinate label.
11. Automatic measurement functions: automatically find a straight line, multi-zone automatic find a straight line, cl2ck circle marquee round, round multi-zone automatic arc.
12. Report function: measurement results can be directly converted to EXCEL, WORD, CAD.
13. Language: support Chinese, English, Korean and Japanese, Russian.

Certifications

FAQ

Q: We don't know much about the machine but we need it, how to decide which model is the best?
A: Please send inquiry to our Sales telling what you need the machine to do.And then our team will work out best solutions for you by sending catalogues, demonstration video or testing of your sample.
Q: We want to protect our payment better, T/T is not accepted.Is there better way for business?
A: L/C, Paypal, Alipay etc. are available, we have many options for safe payment.
Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service.Usually we will send our engineer for overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accomodation.If spot service is not feasible, we will arrange online instruction of installation and online training by means of e-mail,phone,remote control, meeting software etc.
