Introduction

Product Description

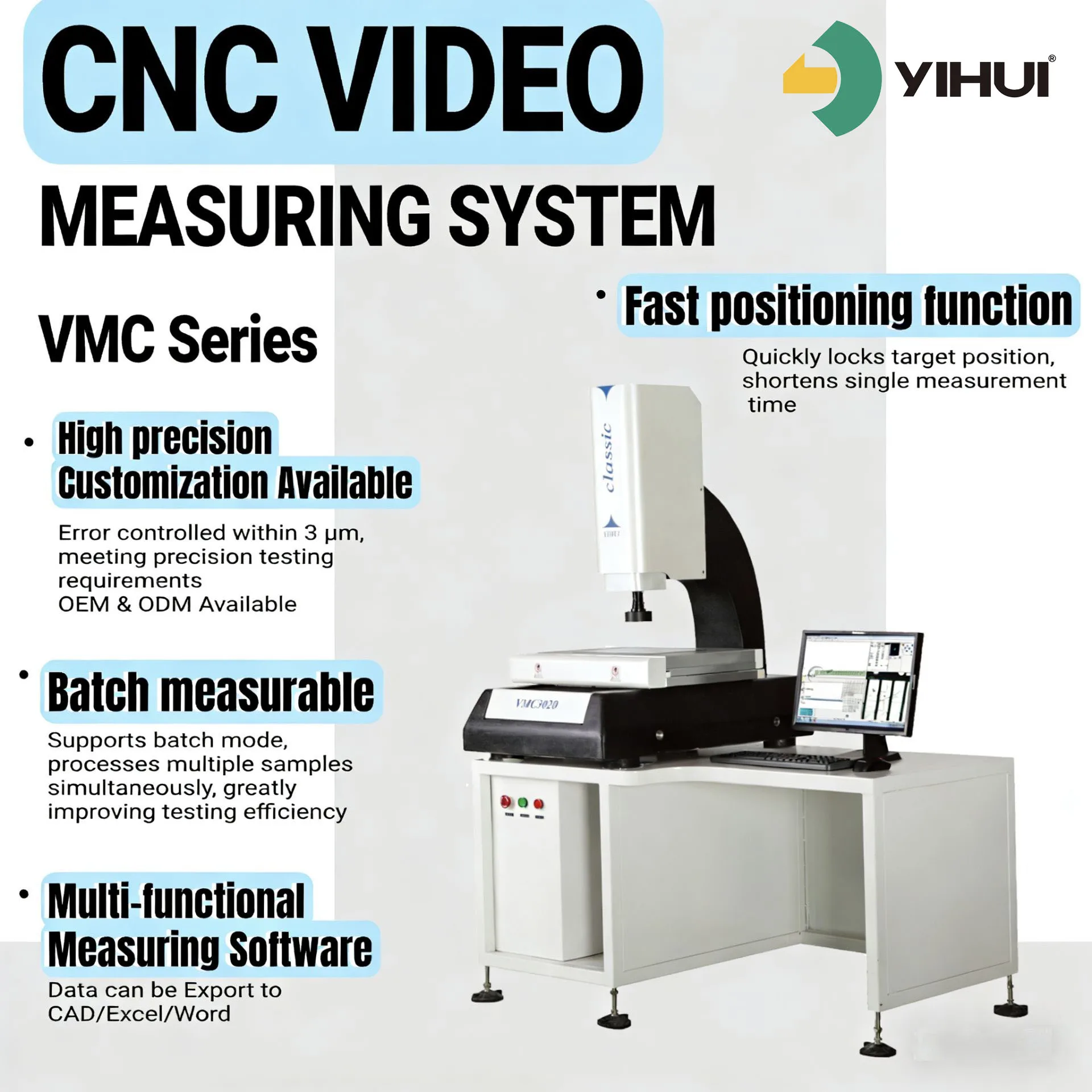

VMC Series Vision Measuring System

2D 3D Optical Parts Dimension Measurement CNC Video Measuring Machine supplier

I. Usage

VMC Series is the high precision type CNC video measuring system developed by Yihui.
It has been widely applied in machinery, electronics, mould and other industries for precision automatic measurement.

Designed for rapid precision measurement & batch test in machinery, electronics, mould, etc

1. To measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function with clear observation.
2. Coordinate measurement, translation and coordinates straighten out.
3. Make measurement data directly into AutoCAD drafting and universal 3D Model file for professional design software like Solidwork, UG&Pro-E.
4. Record user program, editing and execute command.
5. In metrology terms, the machine can test width, length, height, thickness, straightness,flatness, perpendicularity, circular degree, coaxiality, etc.
6. The machine can test products as below:
1)Machinery: sheet, mould & die, gear, turning parts like bearings ,shaft.
2)Electronics: phone& tablet sheet, PCB, watch parts, etc.
3)Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.

II. Features

1. Adopt Germany double closed-loop motion control, motor with precise positioning performance in high-speed movement.
2. Using servo motor, not only increasing motor speed, but also simplifies the instrument and the PC-interface. The PC and instrument is connected through USB line and S-video cable.
3. With 00 JINANQING granite base, goose-neck column and aviation aluminum worktable, its has high stability and elegant appearance.
4. Surface light is formed by 40 groups independent LED light source, and each group is constant current source drived and 200-step continuously adjustable.
5. With specialized CNC measuring software, high working efficiency on measurement.

Specification

Model		VMC3020	VMC4030	VMC5030
	Worktable Size(mm)	600*390	700*490	800*490
Worktable	Glass Table Size(mm)	350*250	450*350	550*350
	X,Y Stroke(mm)	300*200	400*300	500*300
	Load Capacity	approx. 20 kg	approx. 30 kg	approx. 35 kg
Resolution		1μm	1μm	1μm
Accuracy E1*		Ex, y ≤ (2.8+L/200) μm
Accuracy E2*		Exy ≤ (3.3+L/200) μm
Z-axis Stroke (mm)		200(Focus)	200(Focus)	200(Focus)
Instrument Weight (kg)		330	450	500
Dimension (mm)		6208401020	72010401020	80010401020
Motor	Three-axis Max. Velocity		X,Y: 400mm/s Z: 200mm/s
	Three-Axis Positioning Accuracy		0.001mm
Imaging System	Camera		TEO™ Color 1 / 2 "CCD Camera
	Zoom Lens		Pomeas™ manual zoom lens
	Zoom Lens Magnification		0.7-4.5X
	Video Magnification		20-128X
	FOV		11.1-1.7mm
	Power Consumption		600W

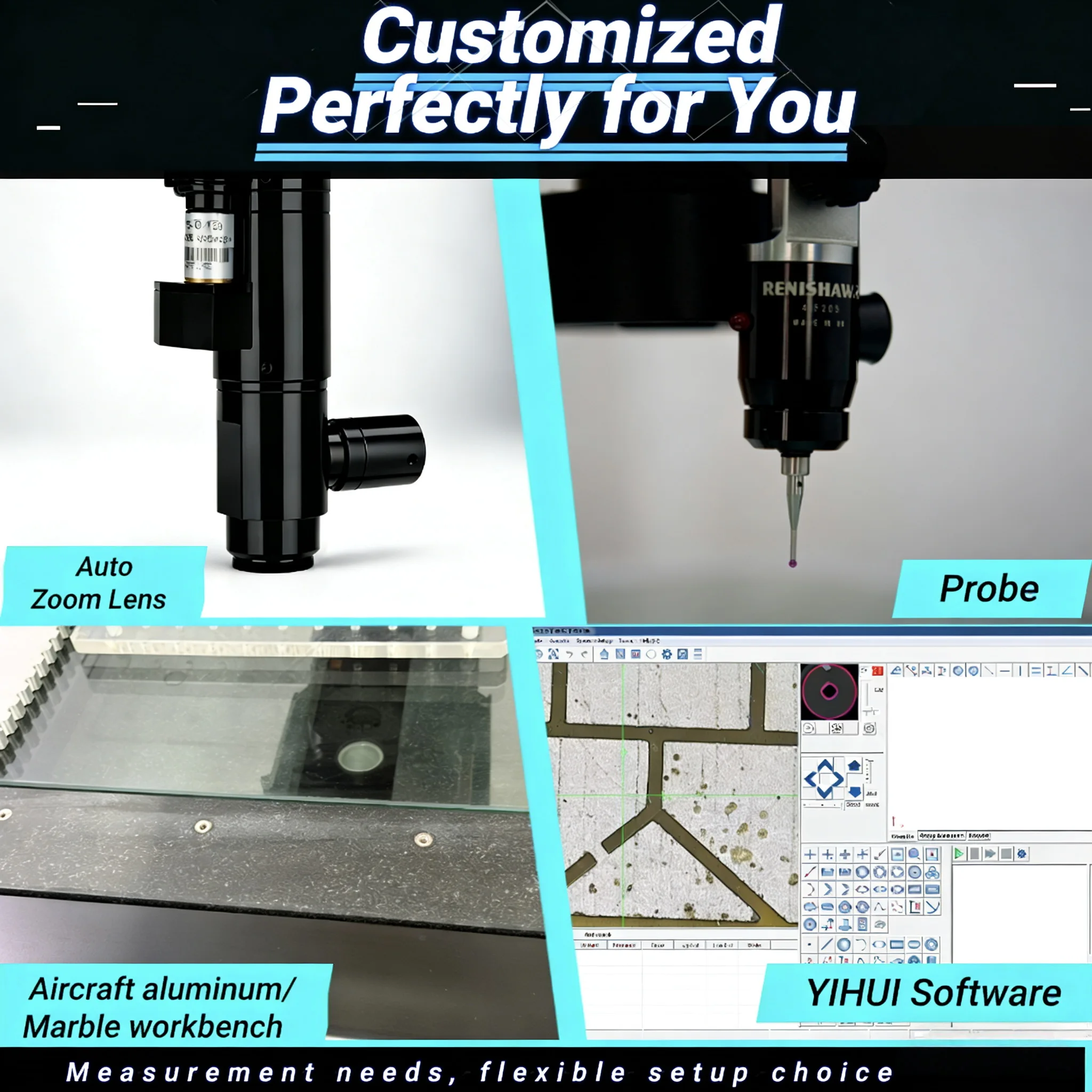

Structure

2D 3D Optical Parts Dimension Measurement CNC Video Measuring Machine manufacture

2D 3D Optical Parts Dimension Measurement CNC Video Measuring Machine details

Problem & Solution

2D 3D Optical Parts Dimension Measurement CNC Video Measuring Machine factory

Packing & Delivery

Company Profile

Dongguan Yihui Optoelectronics Technology Co., Ltd.

Established in 2003, has 18-year experience in manufacturing optical instrument and 13-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries.

Until 2022, our products have been exporting to 54 countries over the world, and we have formal distributors in TAIWAN, KOREA,IRAN, GERMANY and MALAYSIA.Customers from all over the world have been satisfied with our low cost, high efficiency, high quality metrology solutions.

Welcome to contact us for cooperation.

Certifications

FAQ

Q: We don't know much about the machine but we need it, how to decide which model is the best?
A: Please send inquiry to our Sales telling what you need the machine to do.And then our team will work out best solutions for you by sending catalogues, demonstration video or testing of your sample.
Q: We want to protect our payment better, T/T is not accepted.Is there better way for business?
A: L/C, Paypal, Alipay etc. are available, we have many options for safe payment.
Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service.Usually we will send our engineer for overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accomodation.If spot service is not feasible, we will arrange online instruction of installation and online training by means of e-mail,phone,remote control, meeting software etc.
