Introduction

Product Description

High Accuracy Low Cost Shadow Graph 3D Testing Equipment CNC Video Measuring System Optical Measuring Machine supplier

I. Usage

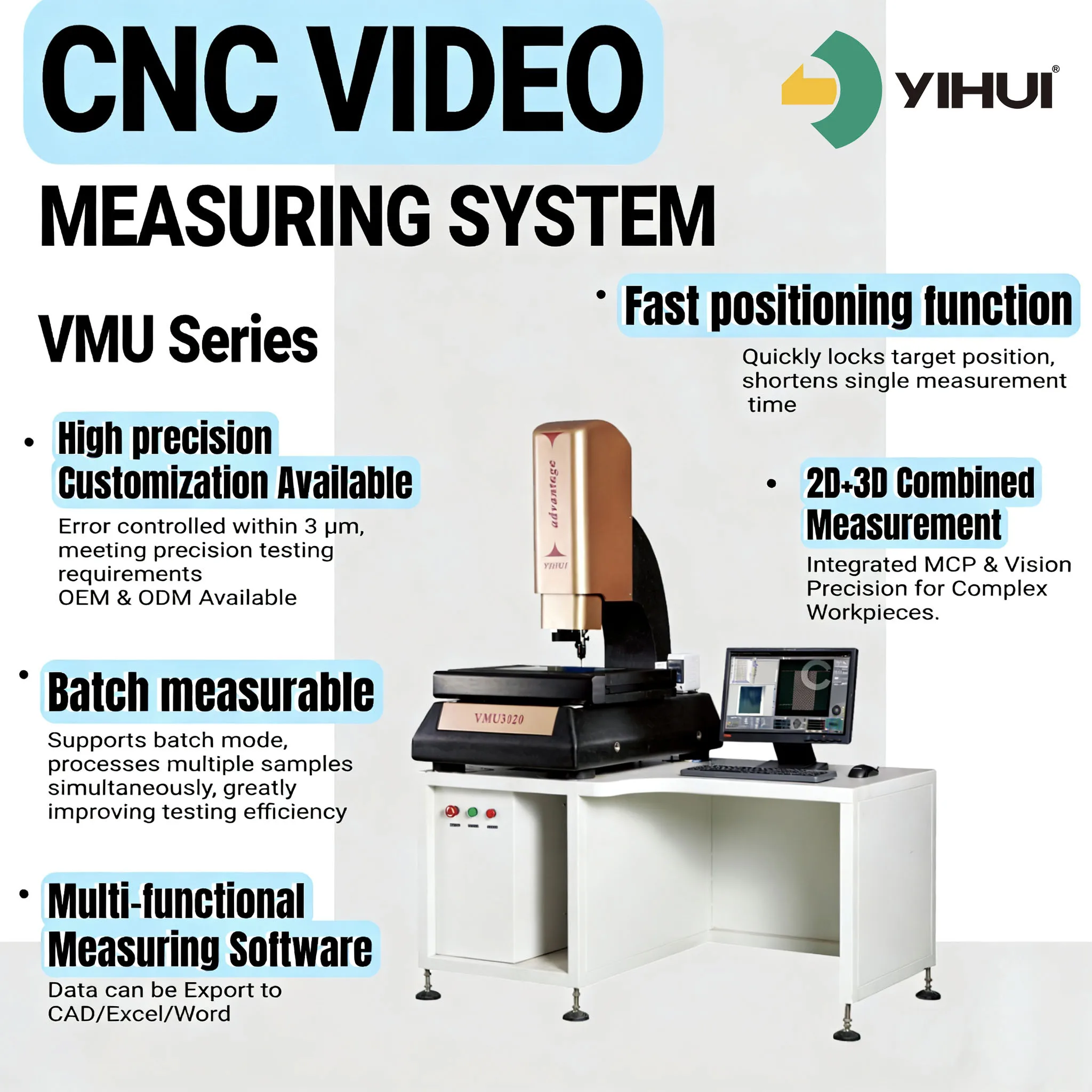

VMU Series is the most advanced CNC type video measuring system with 2 μm precision developed by Yihui.
It has been widely applied in machinery, electronics, mould, etc. for precision auto measurement.
Designed for rapid precision measurement & batch test in machinery, electronics, mould, etc
1. To measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function with clear observation.
2. Coordinate measurement, translation and coordinates straighten out.
3. Make measurement data directly into AutoCAD drafting and universal 3D Model file for professional design software like Solidwork, UG & Pro-E.
4. Record user program, editing and execute command.
5. In metrology terms, the machine can test width, length, height, thickness, straightness,flatness, perpendicularity, circular degree, coaxiality, etc.
6. For example, the machine can test products as below:
1) Machinery: sheet metal, mould & die, gear, turning parts like bearings, shaft.
2) Electronics: phone& tablet sheet, PCB, watch parts, etc.
3) Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.

II. Features

1. It adopts TEO™ 1 / 2’’ color CCD camera and professional Pomeas™ auto zoom lens, big FOV, guarantee clear image during fast moving image measurement.
2. Grade 00 JINANQING granite base, goose-neck column, high stability structure. With German & Japanese auto-control technology,can achieve high precision motion.
3. Programmable control of integrated 40 group, 8 regional independent light sources, achieve professional surface measurement.Swift batch measurement help to cut labor cost.
4. Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderfulmeasurement experience.

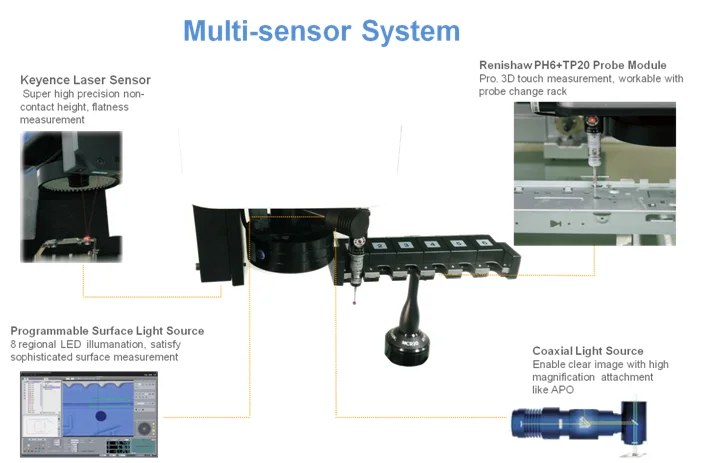

5. Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.

Hardware Configuration

High Accuracy Low Cost Shadow Graph 3D Testing Equipment CNC Video Measuring System Optical Measuring Machine factory

High Accuracy Low Cost Shadow Graph 3D Testing Equipment CNC Video Measuring System Optical Measuring Machine manufacture

Manual zoom lens 0.7X-4.5X

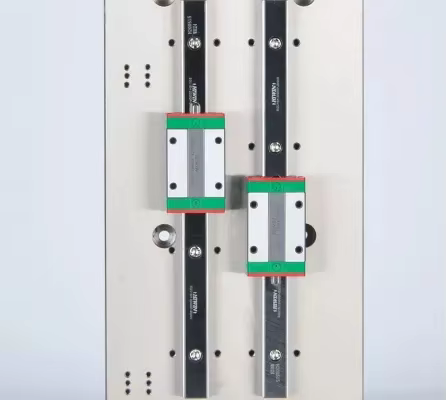

Linear guide way

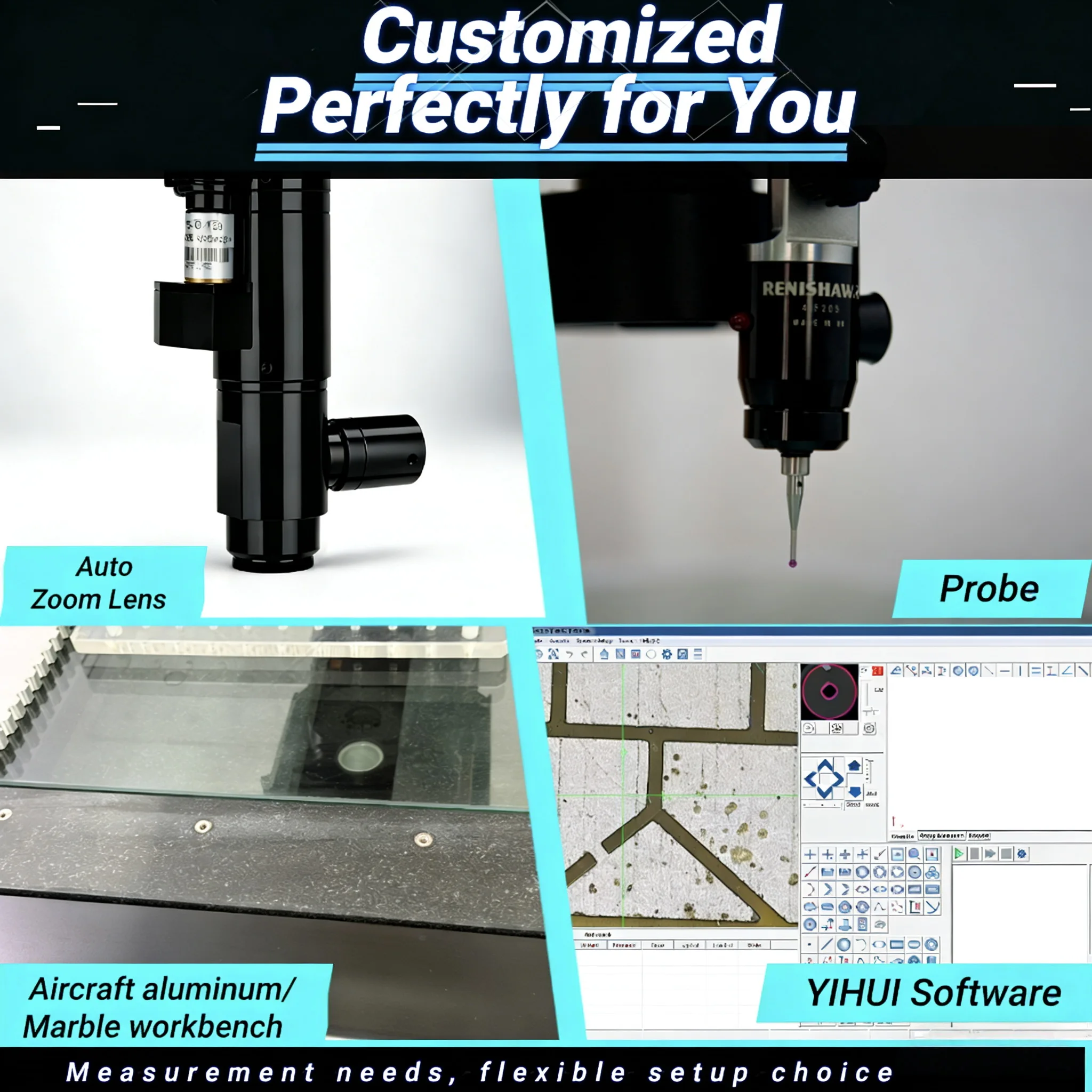

Supporting multiple external accessories

High Accuracy Low Cost Shadow Graph 3D Testing Equipment CNC Video Measuring System Optical Measuring Machine details

High pixel industrial color camera

Specification

Code		4175001
Model		VMU3020
Table	Glass Table Dimension(mm)	350*250
	XY Stroke (mm)	300*200
	Load Capacity	approx. 20 kg
Weight (kg)		330kg
Dimension (LWH, unit:mm)		6208401020
Measuring Targeting System (Standard Accessories)		Camera: TEO™ Color 1 / 2 "CCD Camera
		Zoom Lens: Pomeas™ AUTO zoom lens
		Magnification of lens: 0.7-4.5X
		Video Magnification: 20-128X FOV:11.1-1.7mm
		Resolution: 0.5 μm
Metrology Software		RationalVue™
Z-axis Stroke		200mm
Accuracy E1*		Ex, y ≤ (2.0+L/200) μm
Accuracy E2*		Exy ≤ (2.3+L/200) μm
Illumination		Transmission light, surface light adopt LED, brightness adjustable
Power		110/220V(AC)，800W

Product packaging

Software

Company Profile

Dongguan Yihui Optoelectronics Technology Co., Ltd.

Established in 2003, has 22-year experience in manufacturing optical instrument and 17-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries.

Certifications

FAQ

Q: We don't know much about the machine but we need it, how to decide which model is the best?
A: Please send inquiry to our Sales telling what you need the machine to do.And then our team will work out best solutions for you by sending catalogues, demonstration video or testing of your sample.
Q: We want to protect our payment better, T/T is not accepted.Is there better way for business?
A: L/C, Paypal, Alipay etc. are available, we have many options for safe payment.
Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service.Usually we will send our engineer for
overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accomodation.
