Introduction

Product Description

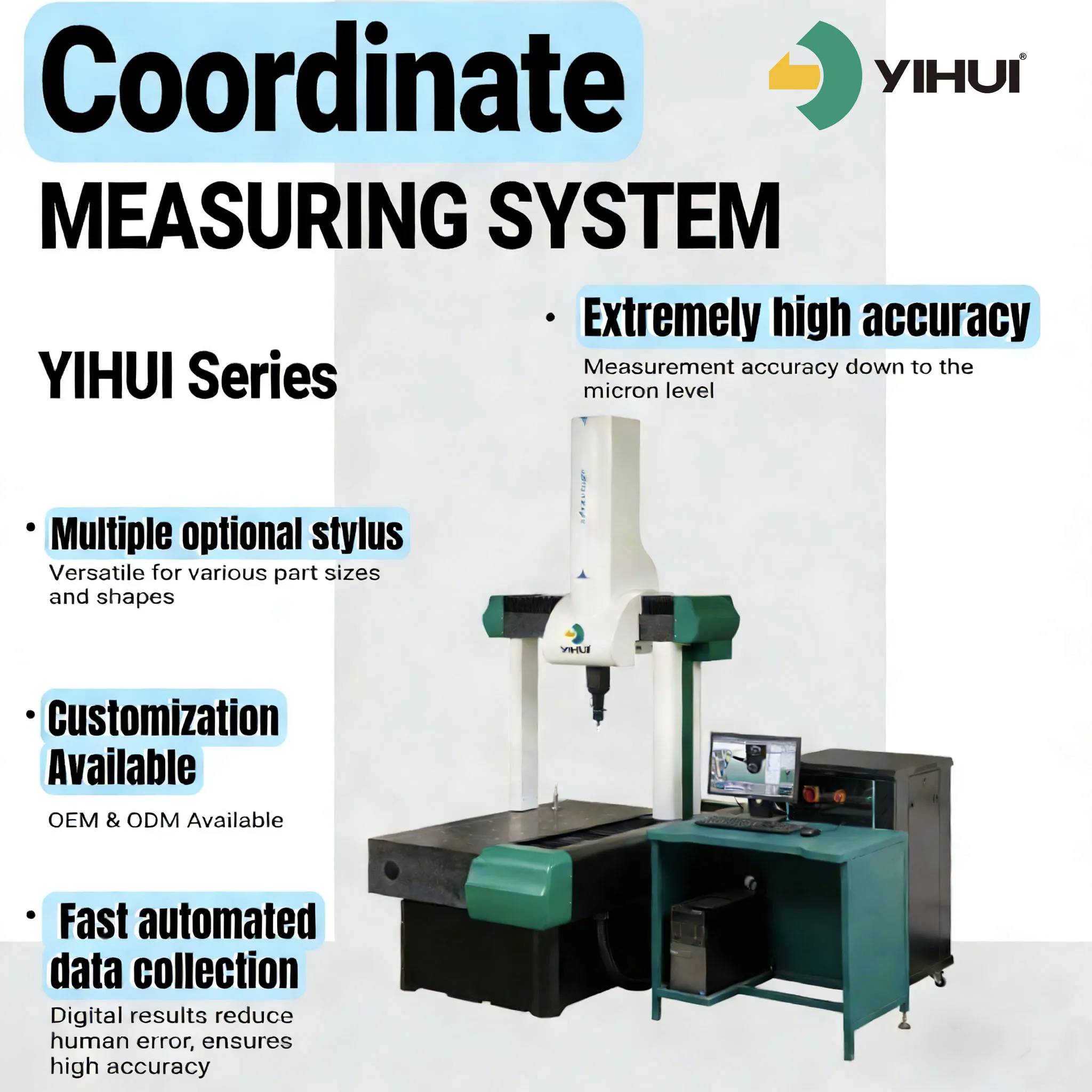

Renishaw Probe Coordinate Measuring Machine YIHUI Series

I Summary

Machine

YIHUI series coordinate measuring machine combines single-point probing and analog scanning in a single high performance measuring machine also can equipped with contact and non-contact probe system. Based on the new generation of controller combines and optimizes temperature and accuracy compensation systems and advanced algorithms to support high-speed, high-accuracy analog open and closed loop scanning.

Design Characteristic

- Granite fixed worktable, all three axes are made of high performance granite, good temperature characteristic, have the same coefficient of thermal expansion.
- Granite worktable with integral “dovetail” guide in X axis, eliminate the pitch and yaw, also provides superior motion stability.
- Z axis air-balance with self-protection, improve motion capability.
- Advanced synchronous belt drive system with non-slip and high stiffness, ensures high stability, lower noise.
- High precise, rigid, and pre-loaded air bearings on all axes, can ensure the guidance never be damped
- Transmission system uses high-power DC servo motor and new double level tape reducer to ensure rapid and accurate axes movement.
- RENISHAW steel scale
- Famous parts from all over the world are used in every important sub systems

II Technical Description

2.1 Machine

Coordinate Measuring Machine (CMM)

- High performance granite fixed worktable and all three axes are made in TAIWAN.
- RENISHAW 0.5um RENISHAW scale and readhead,Resloution: 0.5um
- Pneumatic system made
- Synchronous belt drive system
- Pricision filter
- Full screen and high soft cable towline

Specification

Code	20031503	20031505	20031507	20031509
Model	YIHUI 575	YIHUI 7106	YIHUI 9128	YIHUI 10128
Resolution(um)	0.5	0.5	0.5	0.5
Indication Error(um)*	1.8+3.3L/1000	2.0+3.3L/1000	2.3+3.3L/1000	2.5+3.3L/1000
Measurement Error(um) *	1.8	2.0	2.3	2.5
Measuring Range(DxDyDz, mm)	500700500	7001000600	9001200800	10001200800
Load Capacity(kg)	1000	1200	1500	1600
Dimension(LxLyLz, mm)	129217892426	149220892626	169222893026	179024303130
Weight(kg)	approx. 1080 kg	approx. 1800 kg	approx. 2240 kg	approx. 3000 kg

Code	20031511	20031513	200315XX
Model	YIHUI 10158	YIHUI 121510	YIHUI 15Y10
Resolution(um)	0.5	0.5	0.5
Indication Error(um)*	2.8+3.3L/1000	3.5+3.3L/1000	4.0+3.3L/1000
Measurement Error(um) *	2.8	3.5	4.0
Measuring Range(DxDyDz, mm)	10001500800	120015001000	1500Y≥20001000
Load Capacity(kg)	1700	1800	≥1900
Dimension(LxLyLz, mm)	179027303130	199027303530	/
Weight(kg)	approx. 3410 kg	approx. 4150 kg	≥4500 kg

Software

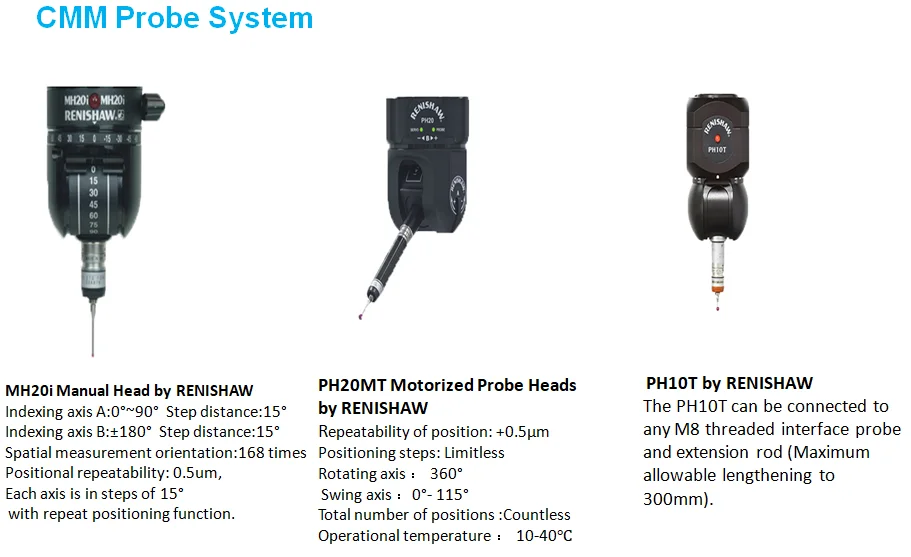

3d Contour Dimension Inspection Scanning Measurement Cmm Coordinate Measuring Machine manufacture

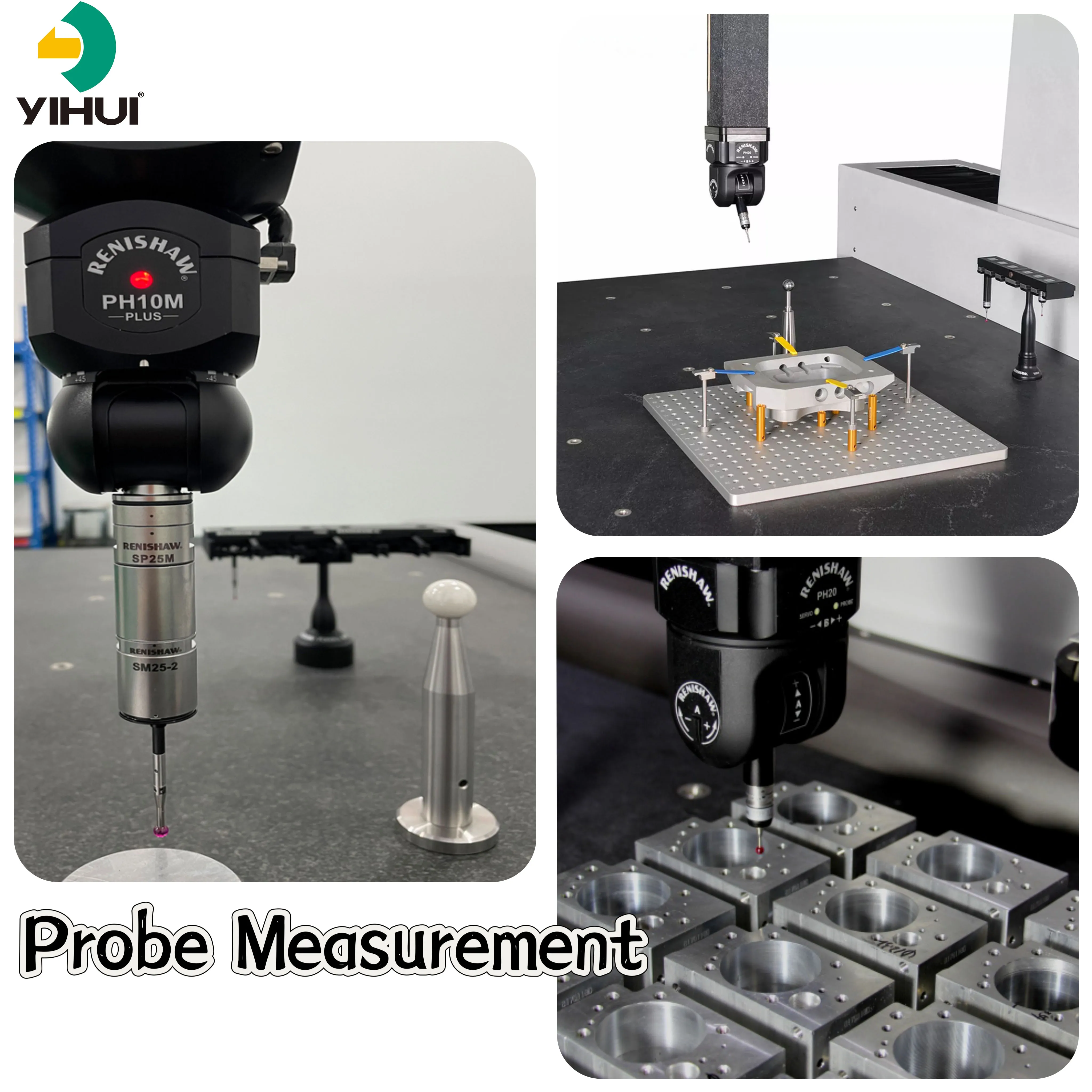

Structure

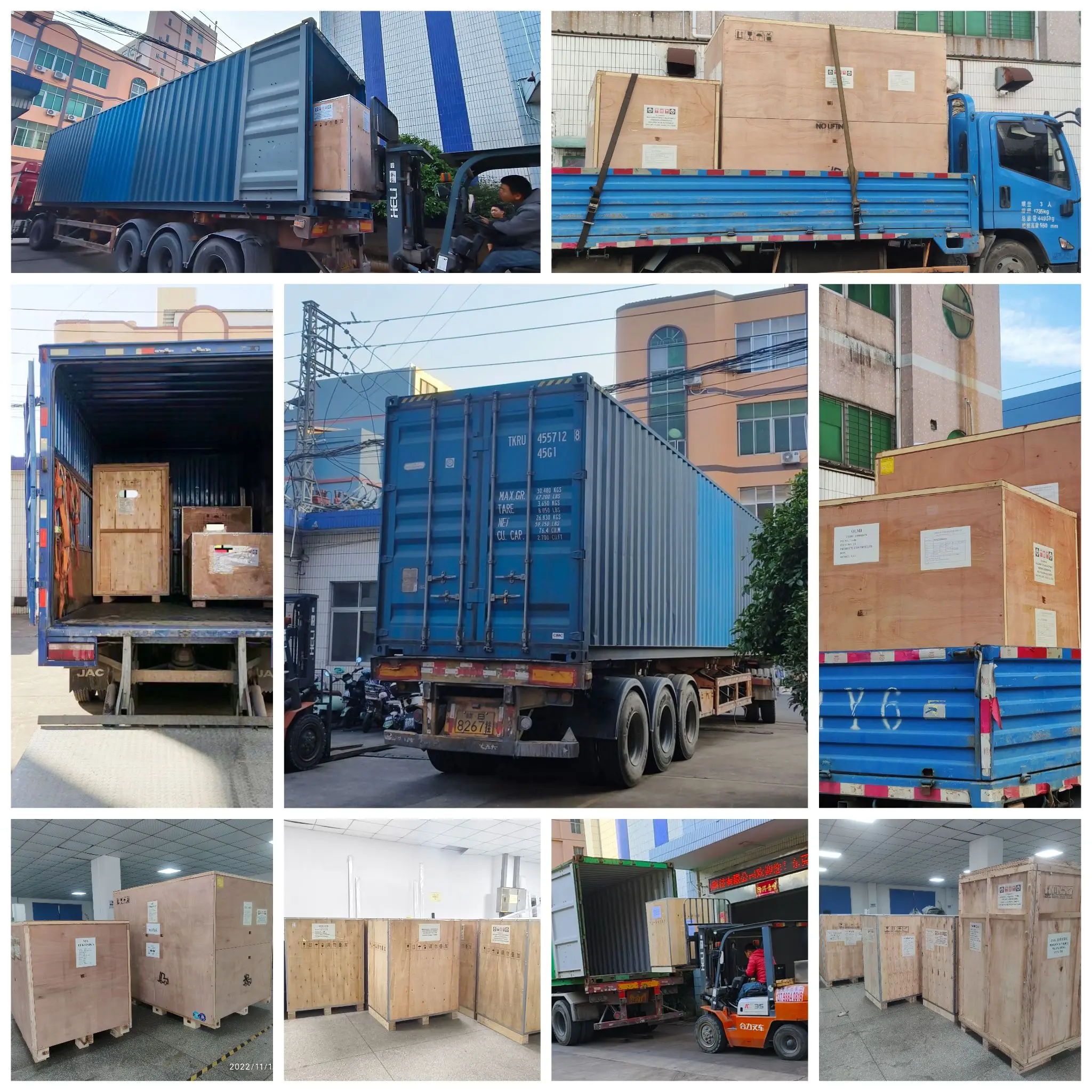

Packing & Delivery

3d Contour Dimension Inspection Scanning Measurement Cmm Coordinate Measuring Machine factory

Company Profile

3d Contour Dimension Inspection Scanning Measurement Cmm Coordinate Measuring Machine supplier

Dongguan Yihui Optoelectronics Technology Co., Ltd.

Established in 2003, has 22-year experience in manufacturing optical instrument and 17-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries.

Until 2022, our products have been exporting to 54 countries over the world, and we have formal distributors in TAIWAN, KOREA,IRAN, GERMANY and MALAYSIA.Customers from all over the world have been satisfied with our low cost, high efficiency, high quality metrology solutions.

Welcome to contact us for cooperation.
