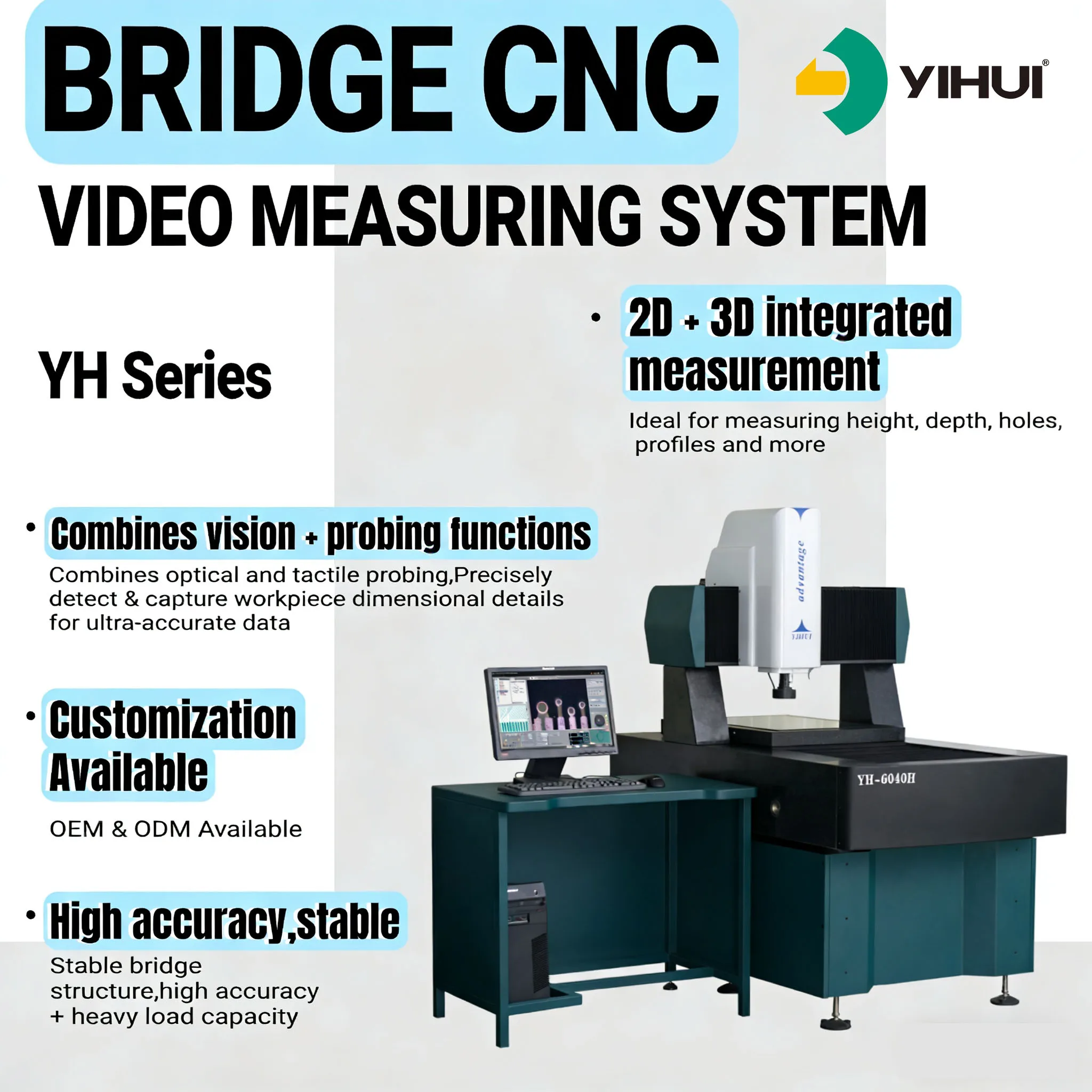

Bridge CNC Video Measuring System YH Series

Quality Control Inspection Large Volume Workpiece Measurement Cnc Optical Measuring Machine supplier

Quality Control Inspection Large Volume Workpiece Measurement Cnc Optical Measuring Machine manufacture

II. Features

1. It adopts TEO™ 1 / 2’’ color CCD camera and professional zoom lens, big FOV, guarantee clear image during fast moving image measurement.
2. Fixed bridge granite structure, with German & Japanese auto-control technology, can achieve high precision motion, high stability for measuring large volume work-piece.
3. Programmable control of integrated 8 regional independent light sources, achieve professional surface measurement. Swift batch measurement help to cut labor cost.

4. Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderfulmeasurement experience.
5. Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.

Specification

Model	YH-6040H	YH-6050H
Glass Size (mm)	650*450	650*550
X,Y Stroke(mm)	400*600	500*600
Z Stroke(mm)	150
Load Capacity	approx. 35 kg
Machine Dimension(mm)	95016001580	95018001580
Weight(kg)	1150	1350
Scale Resolution	1μm
Camera	TEO™ 1 / 2 "CCD Camera
Zoom Lens	professional manual zoom lens, magnification: 0.7-4.5X
Video Magnification	20-128X
FOV	11.1-1 .7 mm
Accuracy E1*	Ex, y ≤ (3.0+L/200)μm
Accuracy E2*	Exy ≤ (4.0+L/200)μm
Illumination	Surface and transmitted light source adopt LED, brightness adjustable

Software

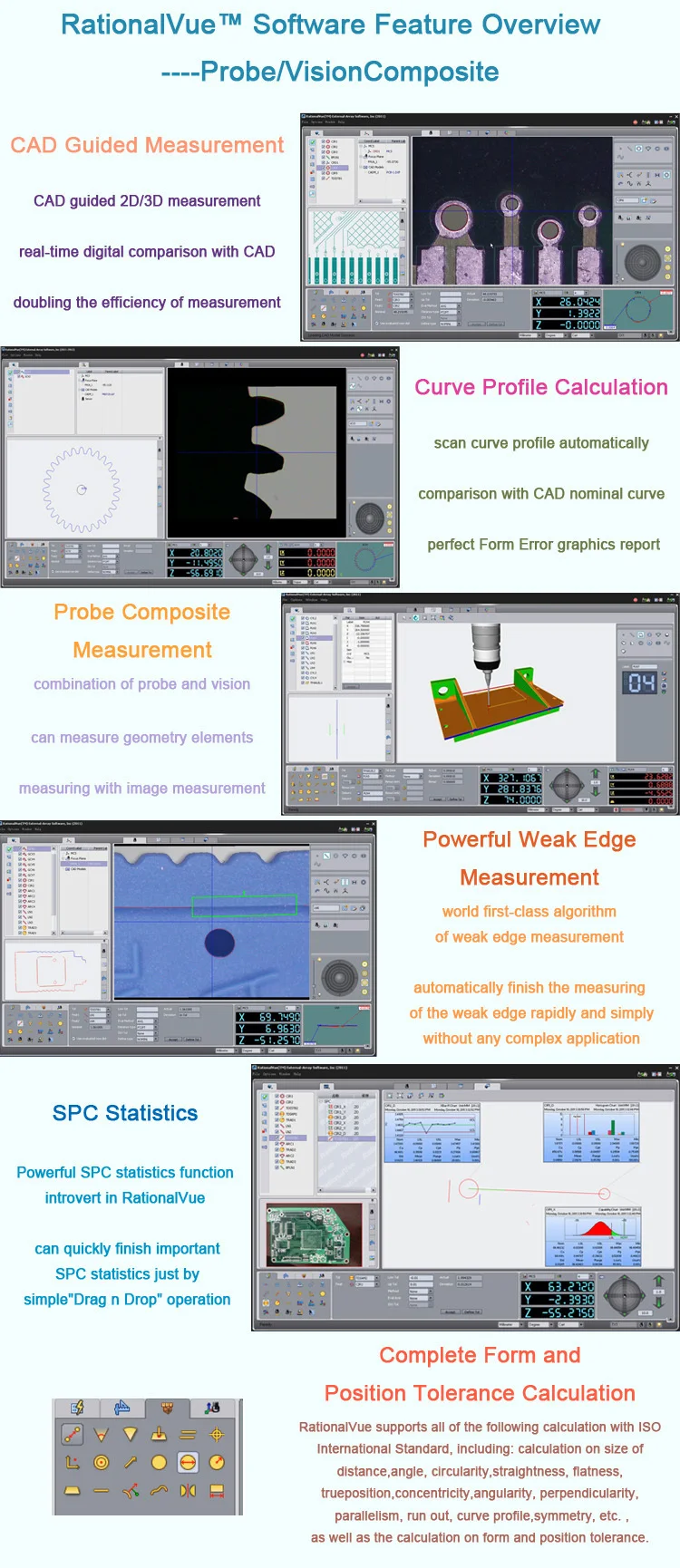

Metrology Software RationalVue™

Quality Control Inspection Large Volume Workpiece Measurement Cnc Optical Measuring Machine factory

Packing & Delivery

Company Profile

Quality Control Inspection Large Volume Workpiece Measurement Cnc Optical Measuring Machine details

Dongguan Yihui Optoelectronics Technology Co., Ltd.

Established in 2003, has 22-year experience in manufacturing optical instrument and 17-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries.

Until 2022, our products have been exporting to 54 countries over the world, and we have formal distributors in TAIWAN, KOREA,IRAN, GERMANY and MALAYSIA.Customers from all over the world have been satisfied with our low cost, high efficiency, high quality metrology solutions.

Welcome to contact us for cooperation.

Certifications

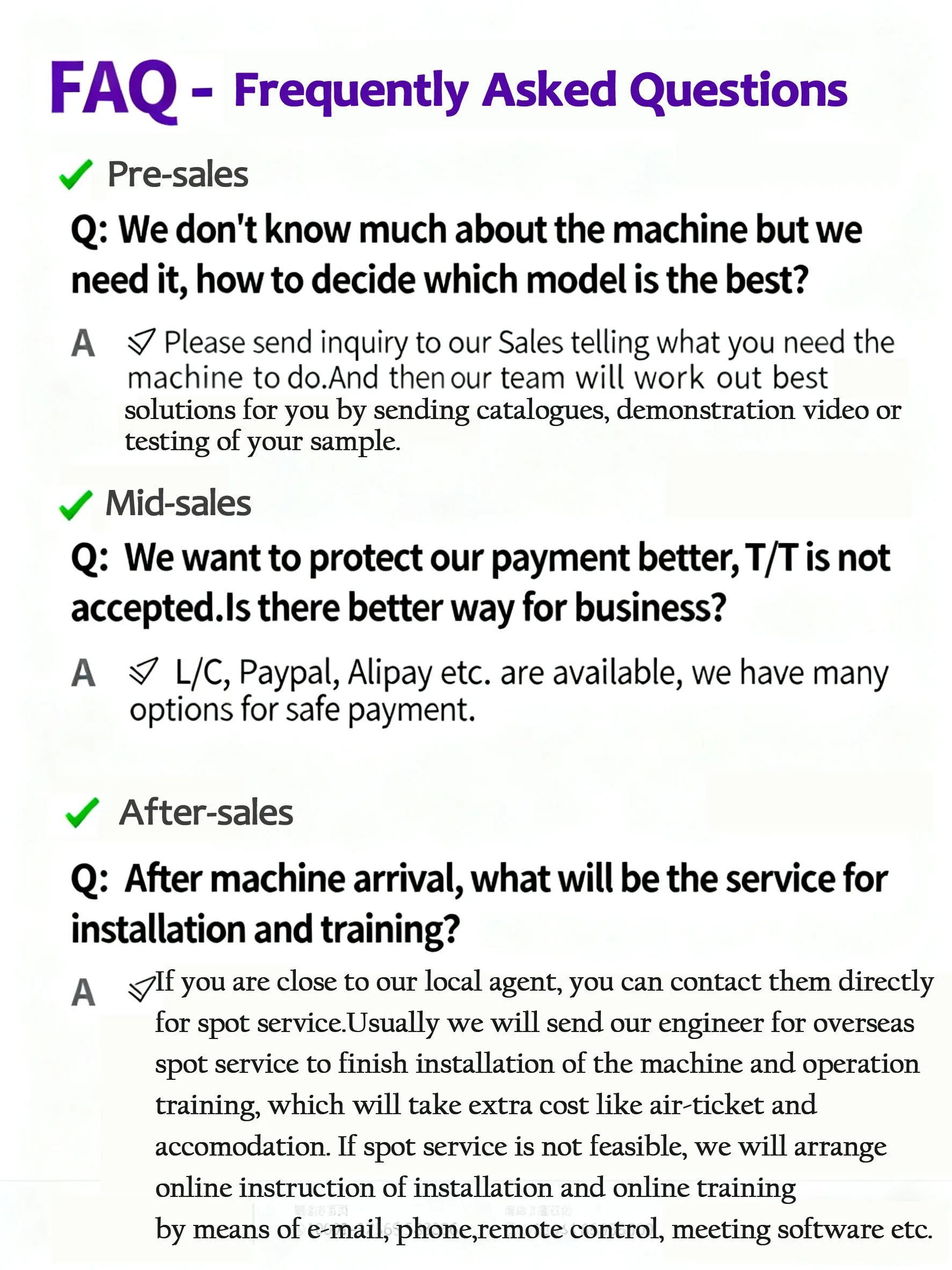

FAQ - Frequently Asked Questions
