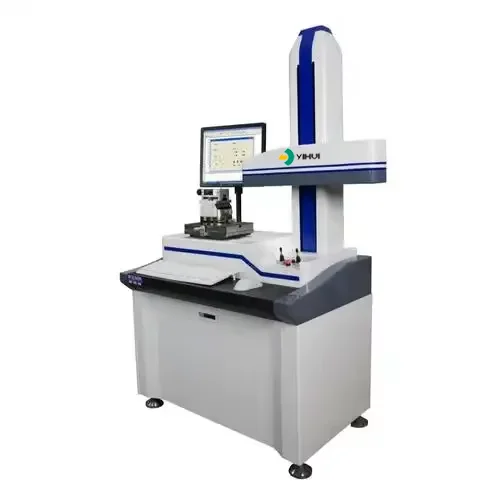

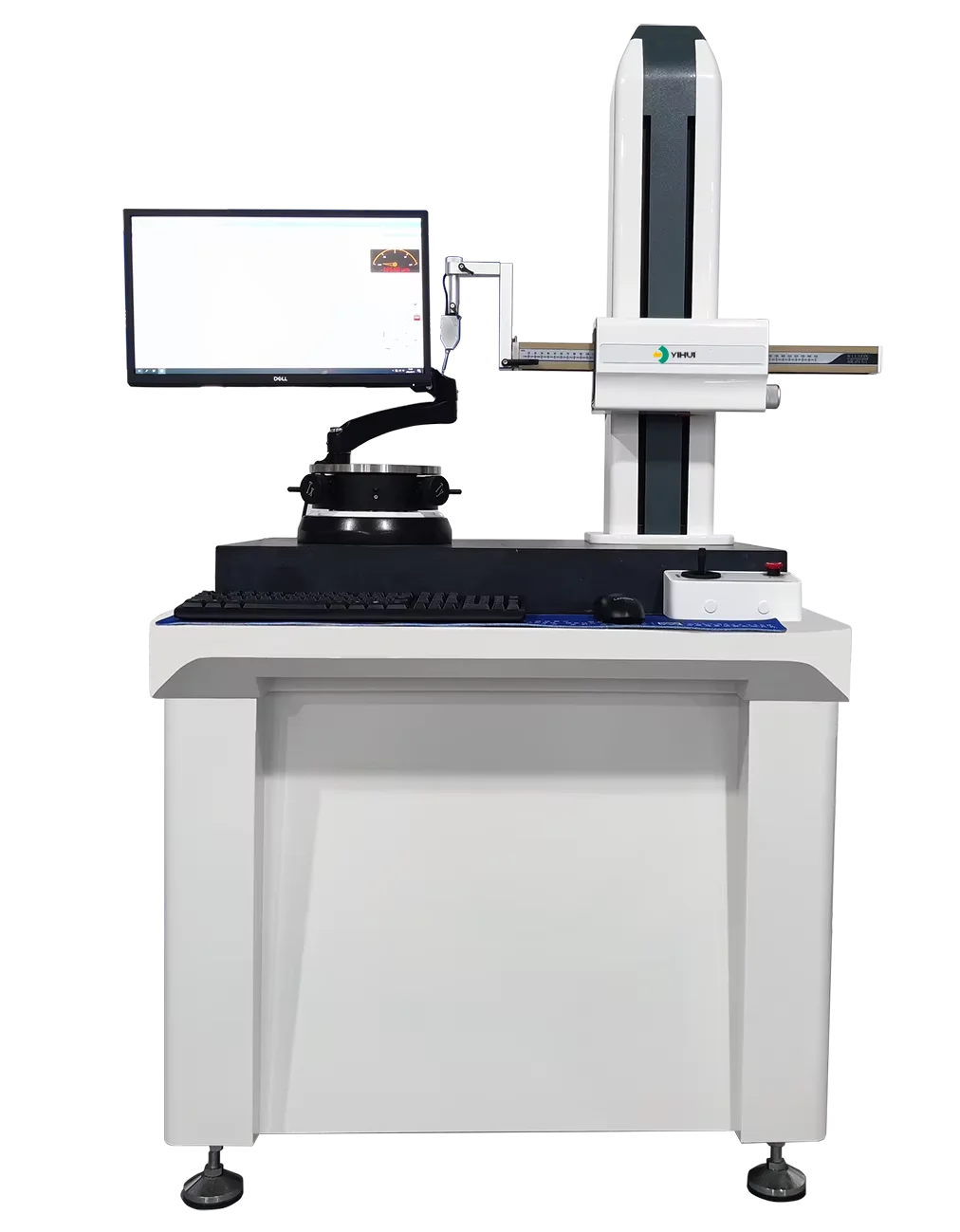

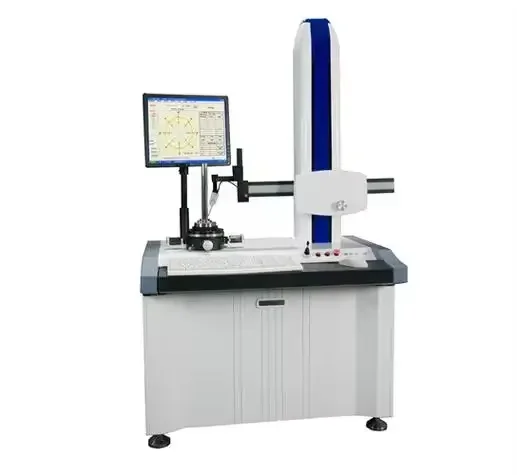

Roundness Tester RTP-1000 Series

RTP-1000 Series High-Precision Testing Equipment for Roundness and Cylindricity Measurements factory

I. Usage

Roundness, coaxiality, concentricity, pulsation, verticality, parallelism, flatness, surface waviness (Wc, Wp, Wv, Wt, Wa,
Wq),spectrum analysis, wave height analysis, etc.
Roundness evaluation methods (4 kinds): minimum area method, least square method, minimum circumscribed circle method, maximum
tangent circle method
Roundness filter gear: 1、1-500、1-150、1-50、1-15、15-500
Wave filtering methods: 3-16, 3-17, 15-500, 17-100
Filtering Form: Gauss (ISO Standard).

II. Features

1. It adopts TEO™ 1 / 2’’ color CCD camera and professional Pomeas™ auto zoom lens, big FOV, guarantee clear image during fast moving image measurement.
2. Grade 00 JINANQING granite base, gantry structure, with German & Japanese auto-control technology, can achieve high precision motion, high stability for measuring large volume work-piece.
3. Programmable control of integrated 40 groups, 8 regional independent light sources, achieve professional surface measurement. Swift batch measurement help to cut labor cost.
4. Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderfulmeasurement experience.
5. Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.

Packing & Delivery

RTP-1000 Series High-Precision Testing Equipment for Roundness and Cylindricity Measurements manufacture

RTP-1000 Series High-Precision Testing Equipment for Roundness and Cylindricity Measurements supplier

Specification

Model		RTP-1000

measuring range	Max. dia.	60mm

	Min. inner dia.	ф5mm

	Max height	350mm

Spindle accuracy	Radial error	±(0.025+5H/10000)μm

	Axial error	±(0.02+6X/10000)μm

Workbench	Table dia.	φ160mm

	Rotation dia.	φ300mm

	Load Wt.	25Kg

	Adjustment range	Adjust the eccentricity ±2mm; adjust the level ±1°

	Rotation Speed	0-12 rpm

Horizontal arm	Horizontal moving distance	150mm

	Moving speed	0.5-6mm/s or manual 0.5-6mm/s
