220V Linear Slide Calibration Tool Laser Interferometer Measurement System with 1 Year Warranty

I. Usage

Laser interferometer LI6000 Series developed by DG-YIHUI is recognized as a high precision, high sensitive measuring method by applying light wavelength as criterion, and is widely used in high-end manufacturing domain.

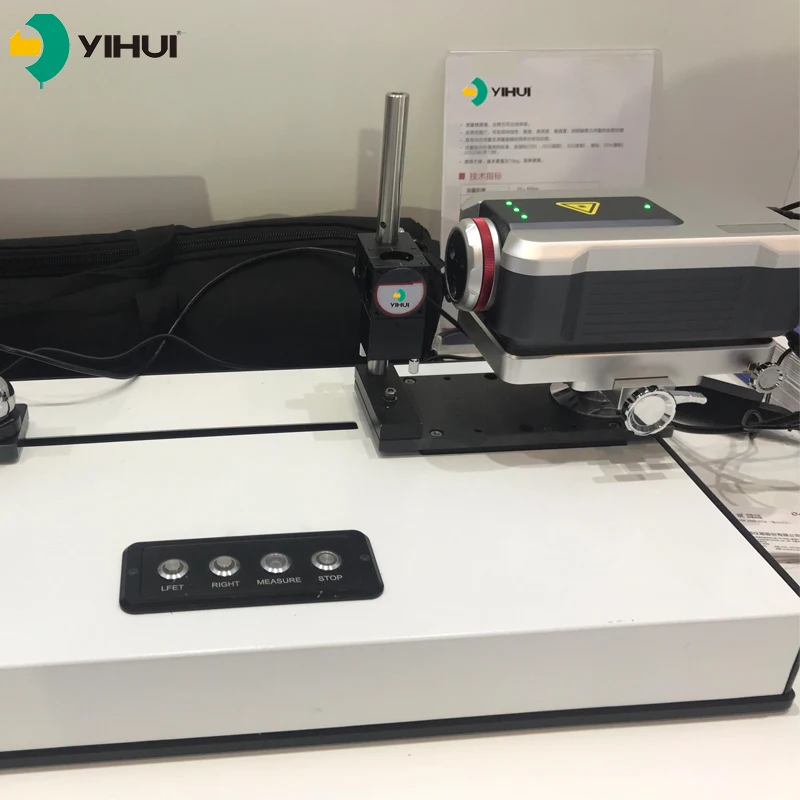

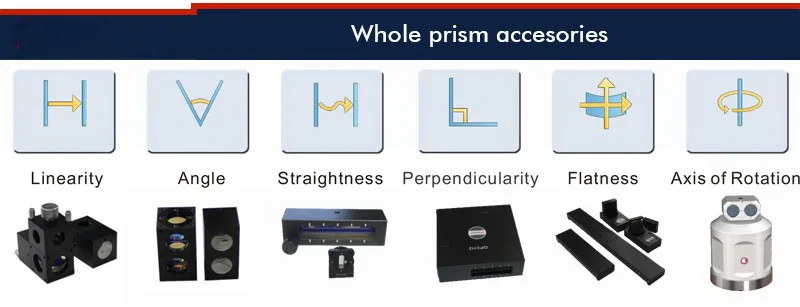

LI6000 Series laser interferometer consists of high-frequency Helium-Neon laser generator from a USA supplier, high-precision environmental compensation modules, high-precision laser interference signal processing system, high-performance computer control system. By applying with thermal frequency stabilization technology of laser dual-longitudinal mode and geometric parameters interference optical path design, LI6000 can output long-term stable and high-precision(0.05ppm) laser quickly(about 6 minutes),which has powerful anti-interference performance. With different prism modules, it can measure linearity, angle, straightness,Flatness and perpendicularity, in addition it can analyze dynamic characteristics. LI6000 Series has many advantages, such as high precision, high speed, high resolution, long range.

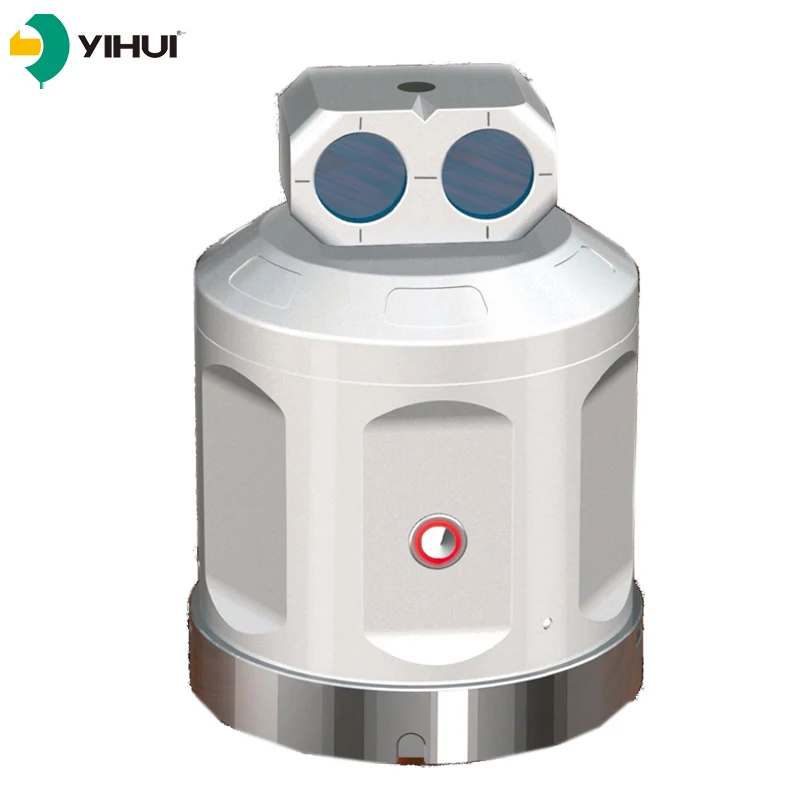

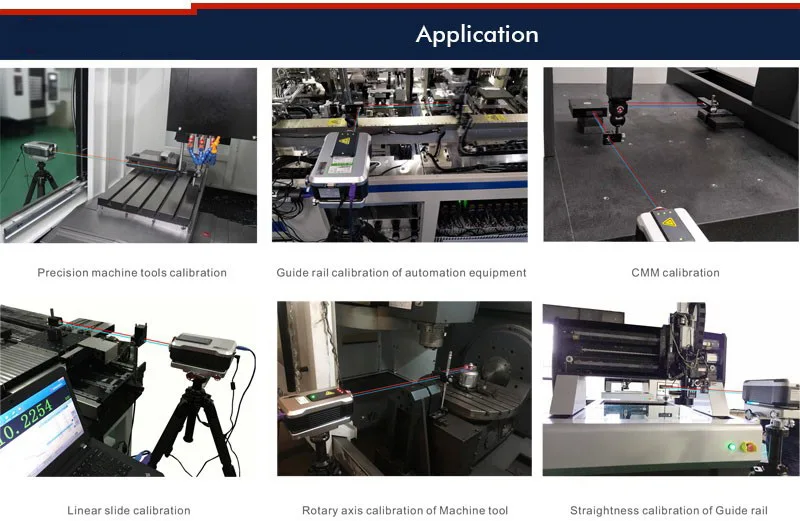

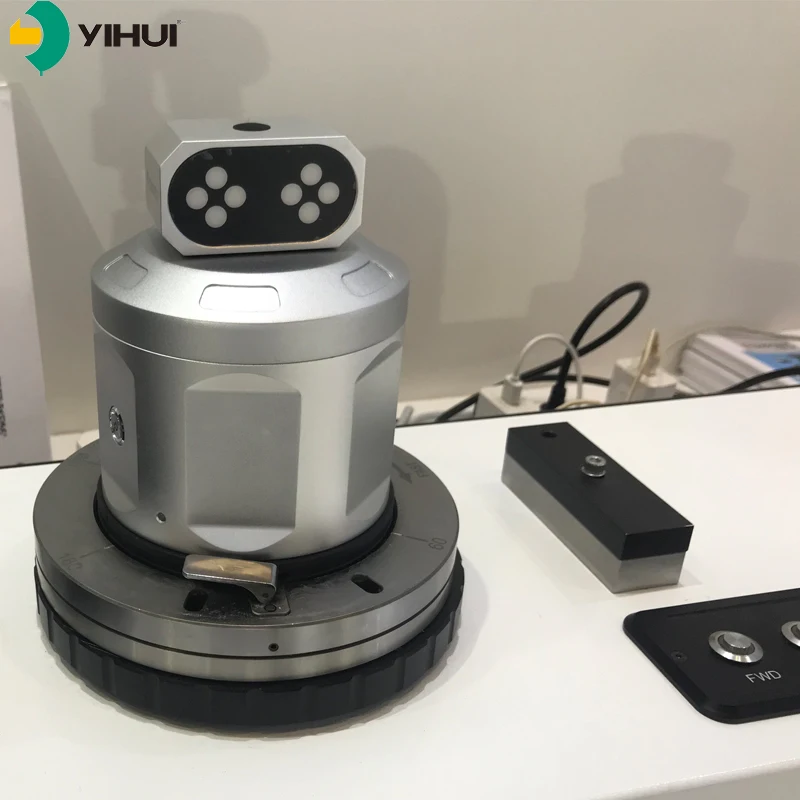

2. It can measure linearity, angle, straightness, perpendicularity and other geometrical parameters; It can measure the linear positioning accuracy and repeated positioning accuracy of guide rails for CNC machine tools, coordinate measuring machines and other precision motion equipments; It canmeasurethe pitch angle, swing angle, perpendicularity and straightness of the guide rails, in addition it can calibrate rotary axis of machine tools.

3. According to compensation settings by user, the system automatically generates error compensation table for calibration of machine tools.

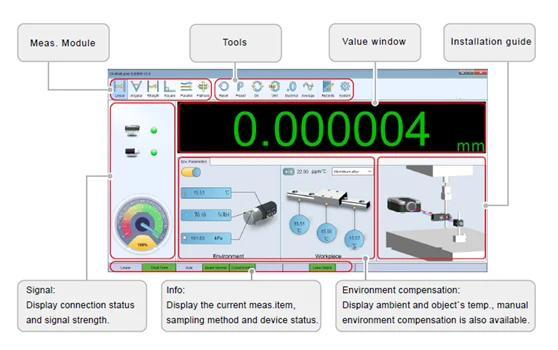

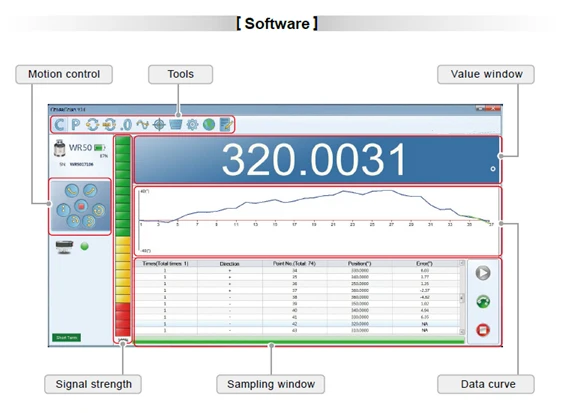

4. With functions of Dynamic measurements (displacement-time curve, velocity-time curve, acceleration-time curve), amplitude measurement and frequency analysis, it can analyze vibration test of machine tool, dynamic characteristics of ball screw, response characteristics of drive system, dynamic characteristics of guide rail and so on.

5. Built-in domestic & international standards, such as GB, ISO, BS, ANSI, DIN, JIS and so on. The system analyzes and processes data according to relevant standard, finally generates test reports including corresponding carve charts and data.

6. Can automatically acquire the parameters of environment temperature, material temperature, environment humidity and atmospheric pressure. Can set environmental compensation by hand, or by system automatically.

7. With centralized database management for measuring records, the user can query and manage the measuring records according to object type, testing institution, manufacturing number, inspector, submitted institution, equipment number, inspection date and effective date; Can export the data to Word, Excel, AutoCAD (optional) files.

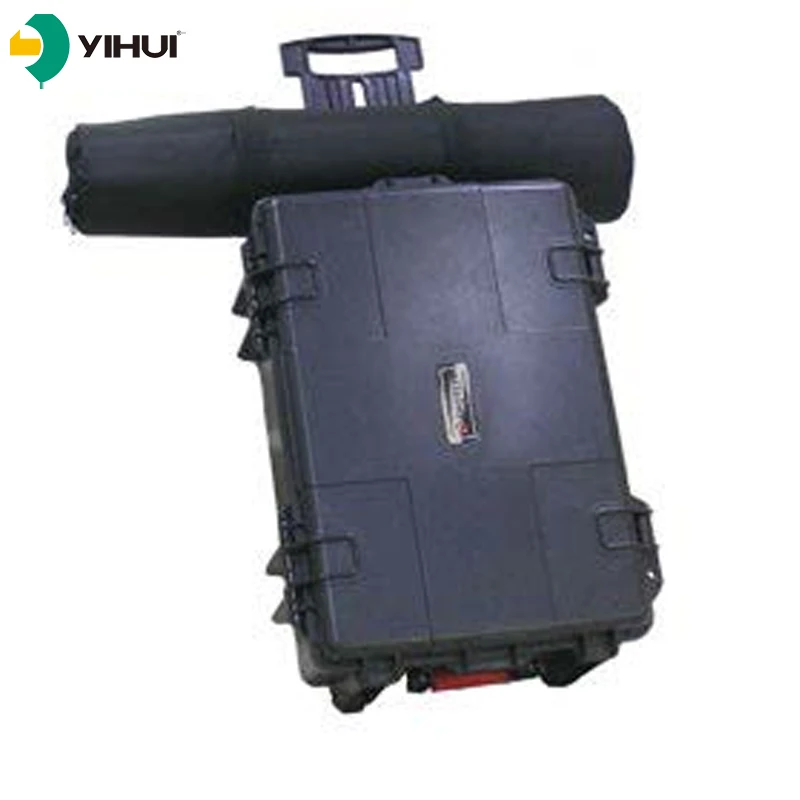

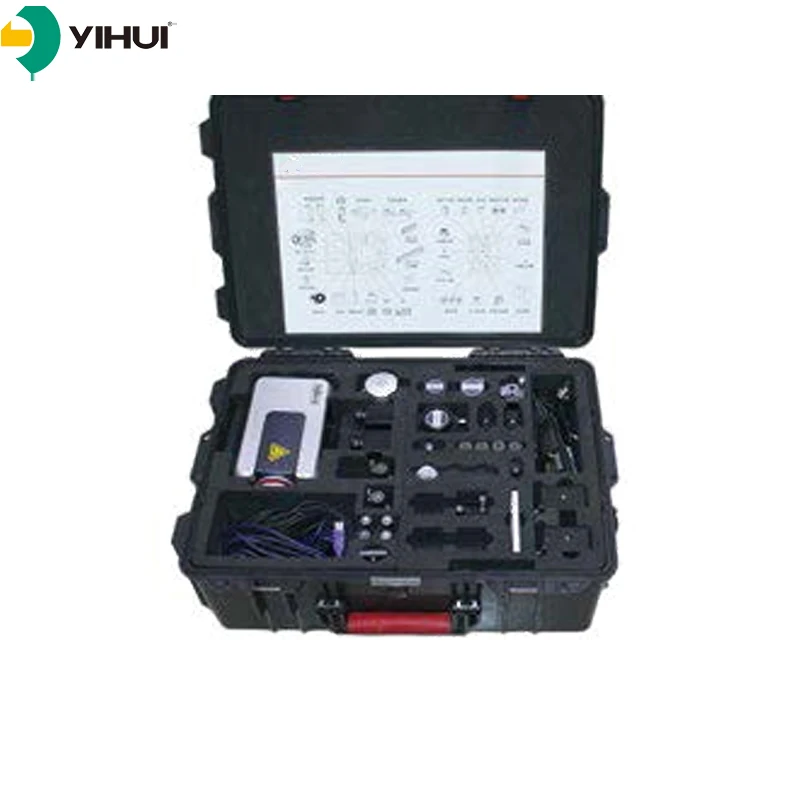

8. Easy to install: Basic weight 15kg, convenient and portable.
