Semi-auto Video Measuring Microscope VMM-D Series

High Quality Optical Measuring Machine Microscope factory

I. Usage

VMM-D series Semi-auto Video Measuring Microscope, is an integrated high-magnification, micron-industry-aimed measuring instruments developed by DG-YIHUI.
Combined with powerful microscopic inspection technology, has been widely applied in many fields as follows:
1. Used as observational microscope to inspect the surface finish of work-piece by comparative law, identify ore samples in metallurgical industry, photomechanical print test, inspection of textile fibers and so on.
2. To measure length in Cartesian coordinates. For example, measuring pitch, the base surface distance, engraved line distance, engraved line width, slot width, slit width, the outer diameter of the through-hole and so on.
3. To measure angle, for example, angle measurement for dials, templates, gauges, drilling template and those parts with complex structure.
4. With PC and powerful metrology software, not only a microscope, but also a vision measuring system, can achieve professional measurement data management.

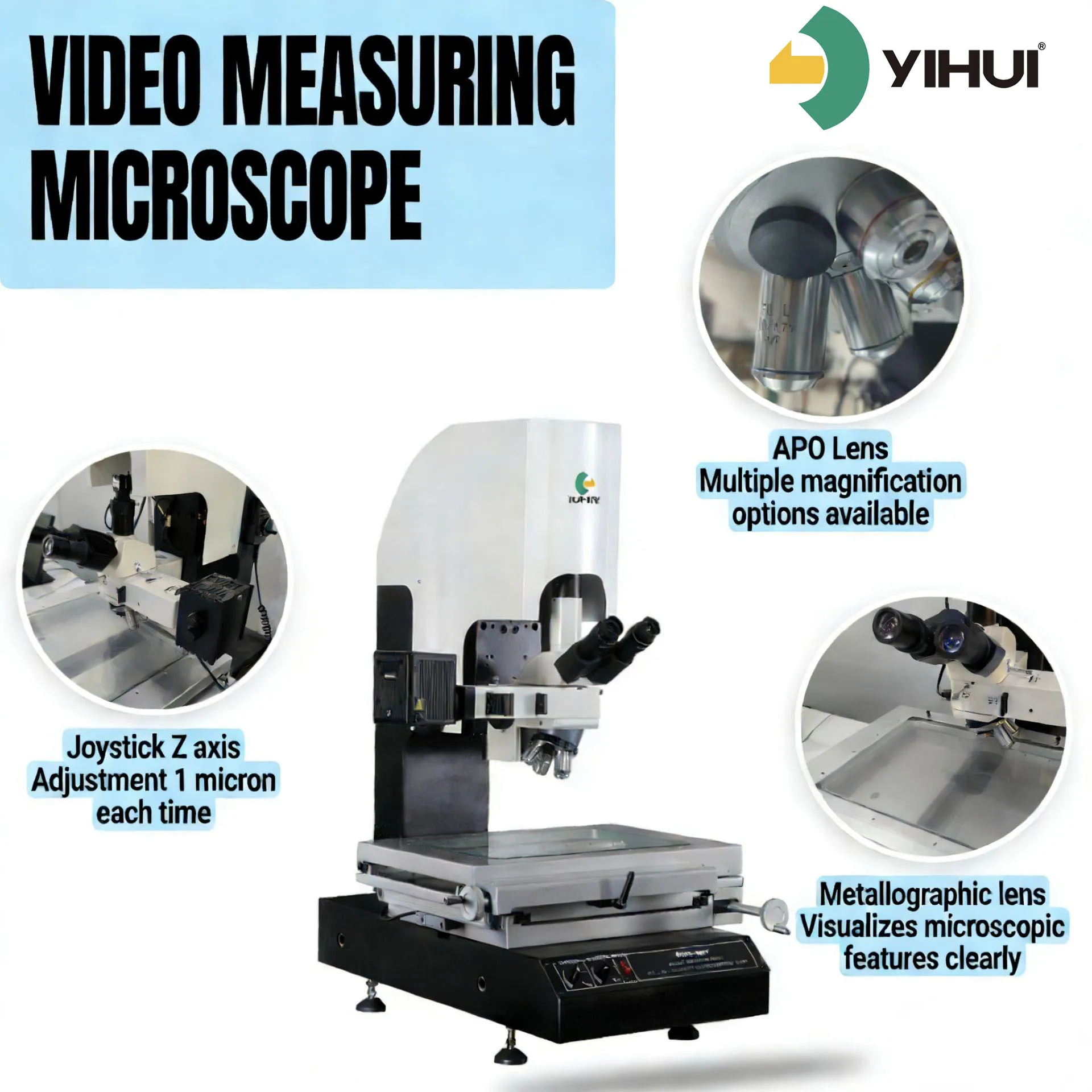

II. Features

1. Bright field view of the investigation, positive image and clear pictures.
2. Long working distance lens, up to 2800 times magnification.
3. Precise smooth transmission, less friction so that long working life.
4. Motorized Z axis, can achieve auto focus at high accuracy.
5. X axis and Y axis designed with built- in zero switching, lock them if needed.
6. With powerful software YH-M™, can measure most 2D data and export measurement as AutoCAD file and other reports.

Specification

Model	VMM-3020D	VMM-4030D	VMM-5040D
Stroke (XYZ, mm)	300200200	400300200	500400200
Load Capacity	approx. 15 kg	approx. 20 kg	approx. 30 kg
Dimension(LWH,mm)	670 x 660 x 950	7209501020	80010401020
Machine Weight(kg)	230	315	500
Accuracy E1*	Ex, y ≤ (2.5+L/200)μm
Accuracy E2*	Exy ≤ (3.5+L/300)μm
Scale Resolution	0.5 μm
Microscope	1.3 MP color CCD Camera
Camera
Optical system	Infinity-corrected optical system
Objective	standard	optional
	PL 5X,10X,20X,50X	PL 2.5X, 100X
Nosepiece	Intilted quintuple nosepiece for bright field
	Coaxial coarse and fine adjustment, coarse adjustment distance 32mm, precision of fine adjustment: 0.002mm,
Focus System	with tense adjusting device to prevent gliding.
	6V 30W/12V 50W halogen and brightness adjustable.
Illumination System	Integrated field diaphragm, aperture diaphragm and pullerty polarizer
	Equipped with frosted glass, yellow/green/blue filters
Video Magnification	140~1400x(Objective* 1/2’’ CCD Camera)
Work-piece Height Limit	200mm
Power Supply	AC110V/60Hz, 220V/50Hz

High Quality Optical Measuring Machine Microscope supplier

Software

Metrology Software (YH-M™)

High Quality Optical Measuring Machine Microscope manufacture

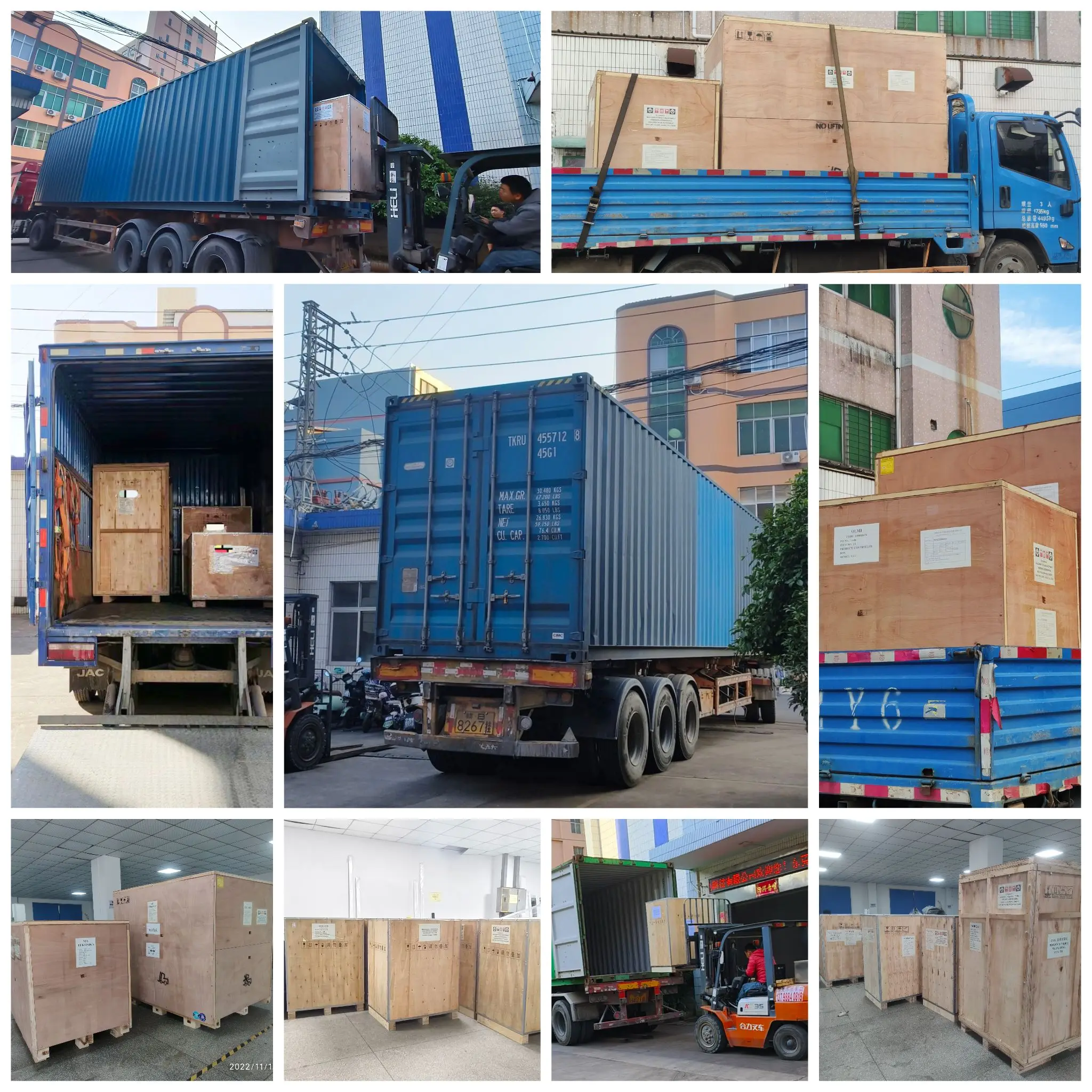

Packing & Delivery
