High Precision Measurement: Measures mechanical parts with an accuracy of 3.
IP65 Protection: Dustproof and waterproof for reliable use in various environments.
1 Year Warranty: Enjoy peace of mind with a comprehensive one-year warranty.
Product descriptions from the supplier
Highlights at a glance
High Precision Measurement: Measures mechanical parts with an accuracy of 3.
IP65 Protection: Dustproof and waterproof for reliable use in various environments.
1 Year Warranty: Enjoy peace of mind with a comprehensive one-year warranty.
OEM/ODM Customization: Customize your measurement solution to meet specific needs.
220V Operation: Suitable for international power standards, ensuring global compatibility.

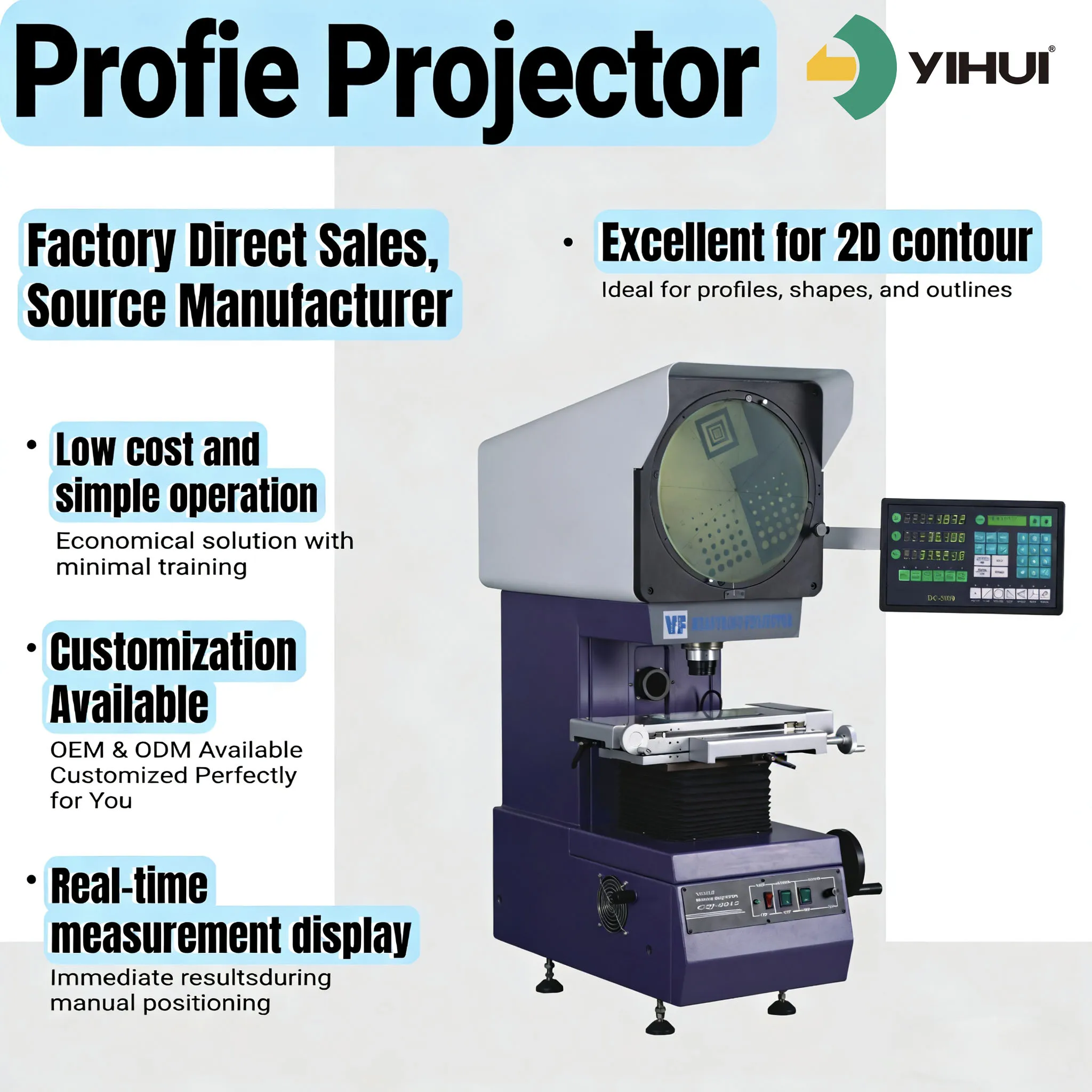

15.2 Specification
| Code | 04175... |
101 CPJ-3015 |
102 CPJ-3020 |
103 CPJ-3025 |
|
| Model | |||||

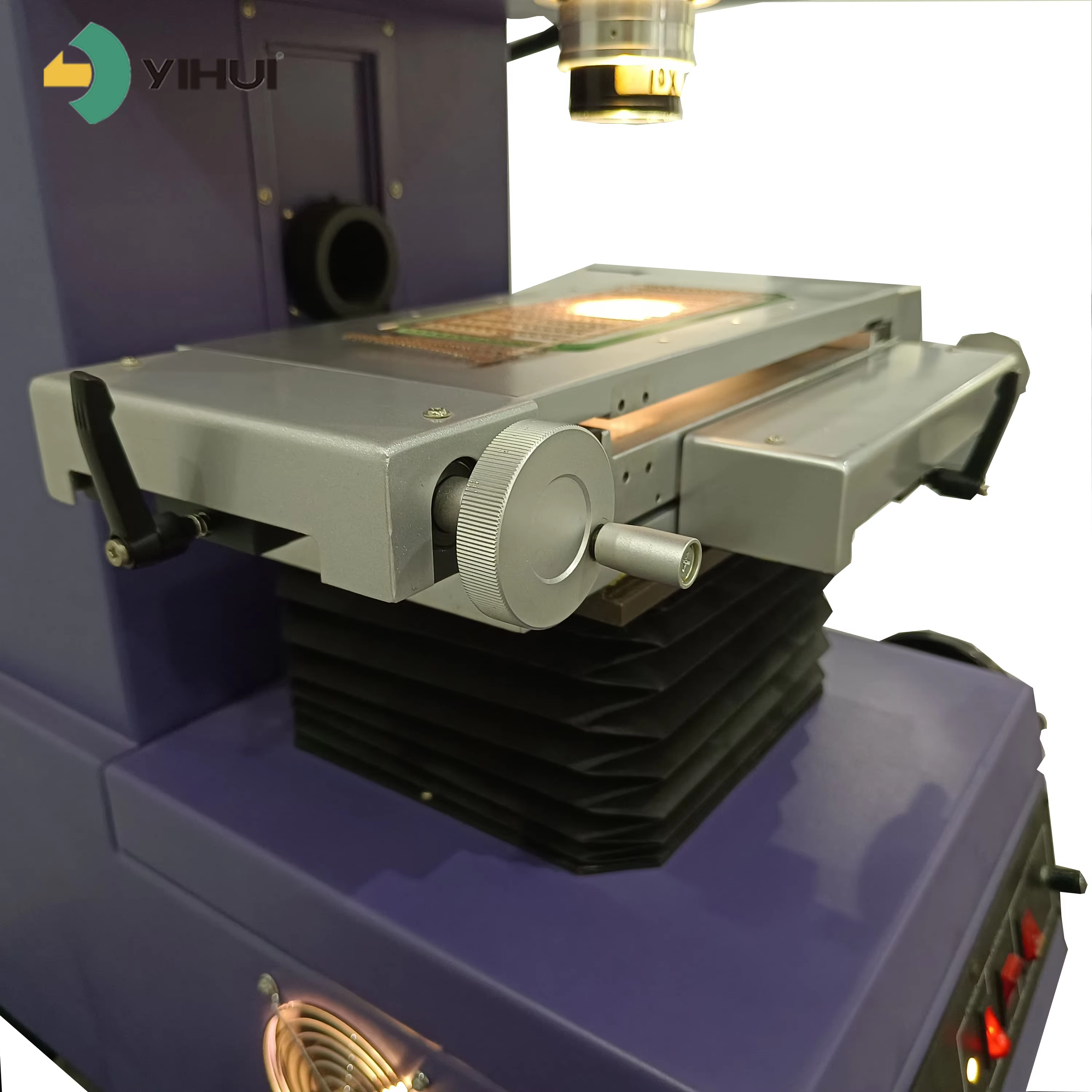

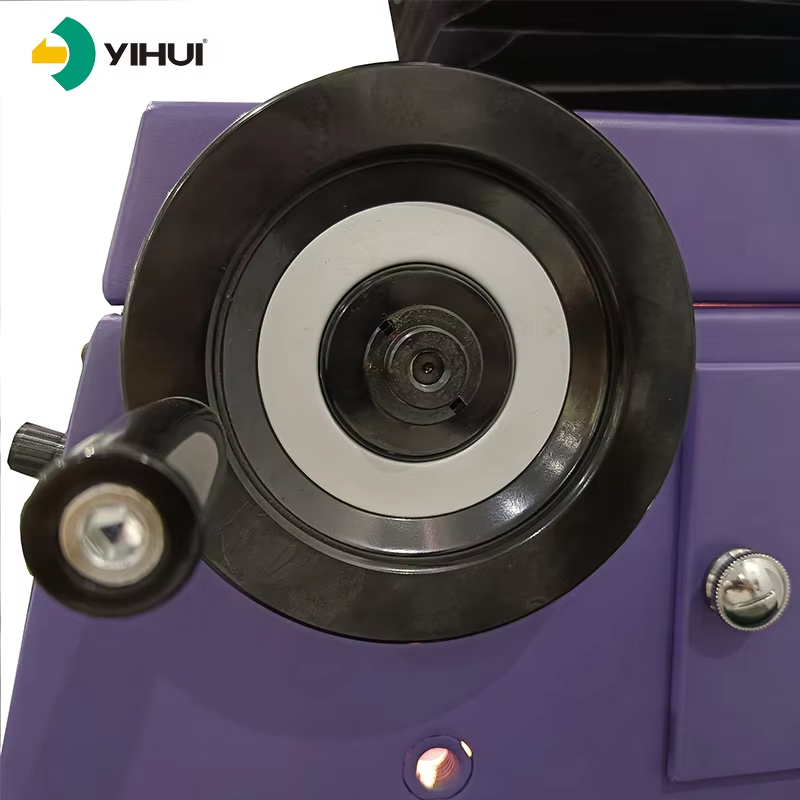

| Table | Metal Table Size (mm) | 340 × 152 | 404 × 228 | 450 × 280 | |
| Glass Table Size (mm) | 196 × 96 | 260 × 160 | 306 × 196 | ||
| X-axis Stroke (mm) | 150 | 200 | 250 | ||
| Y-axis Stroke (mm) | 50 | 100 | 150 | ||
| Z-axis Stroke (mm) | 90 for focus | ||||
| Measuring Accuracy* | Ex, y ≤ (3.0+L/200) μm | ||||
| Resolution (X,Y) | 0.5 μm | ||||

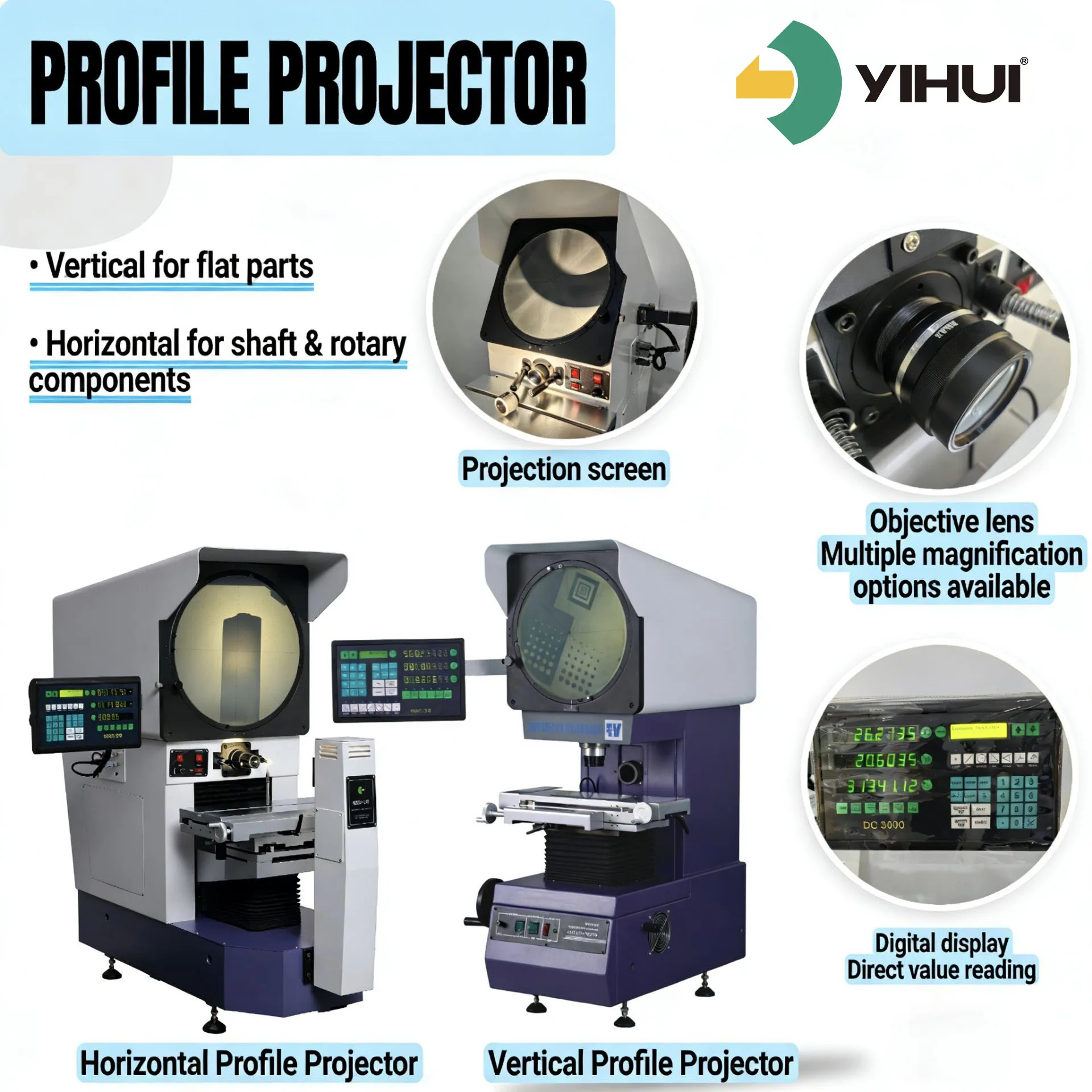

| Projector Screen | Screen Size (mm) | ∅ 312 Used range > ∅ 300 (with the meter line) | |||
| Screen Rotary Range | 0°~360° | ||||
| Rotary Angle Resolution | 1° or 0.01° | ||||

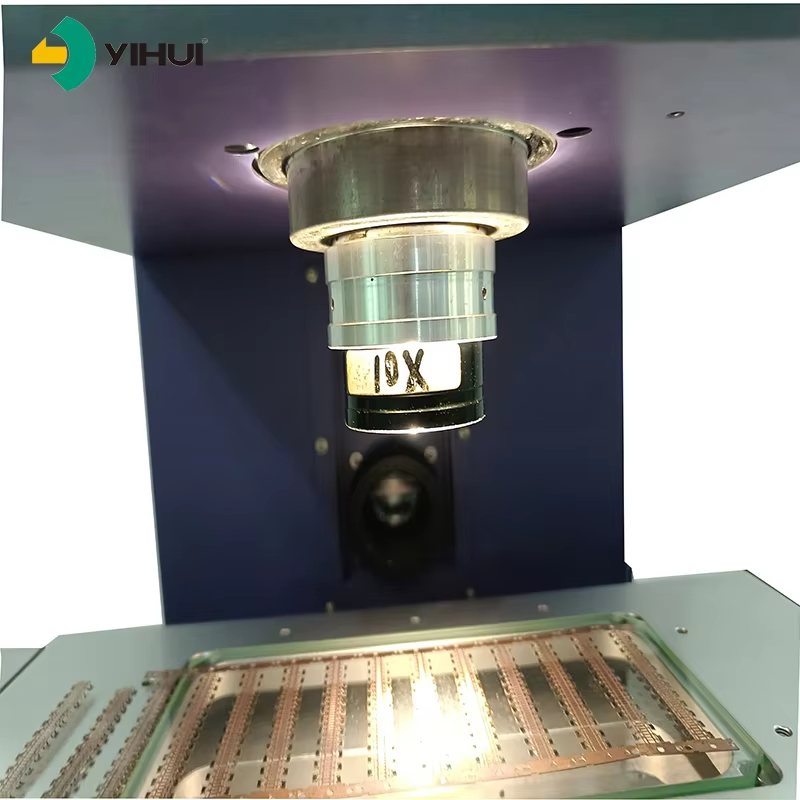

| Lens | Magnification | 10X (standard) | 20X (option) | 50X (option) | 100X (option) |
| Object View | ∅30 | ∅15 | ∅06 | ∅03 | |
| Working Distance | 77.7 mm | 44.3 mm | 38.4 mm | 25.3 mm | |
| Max. Work piece height | 80 mm | 80 mm | 80 mm | 80 mm | |

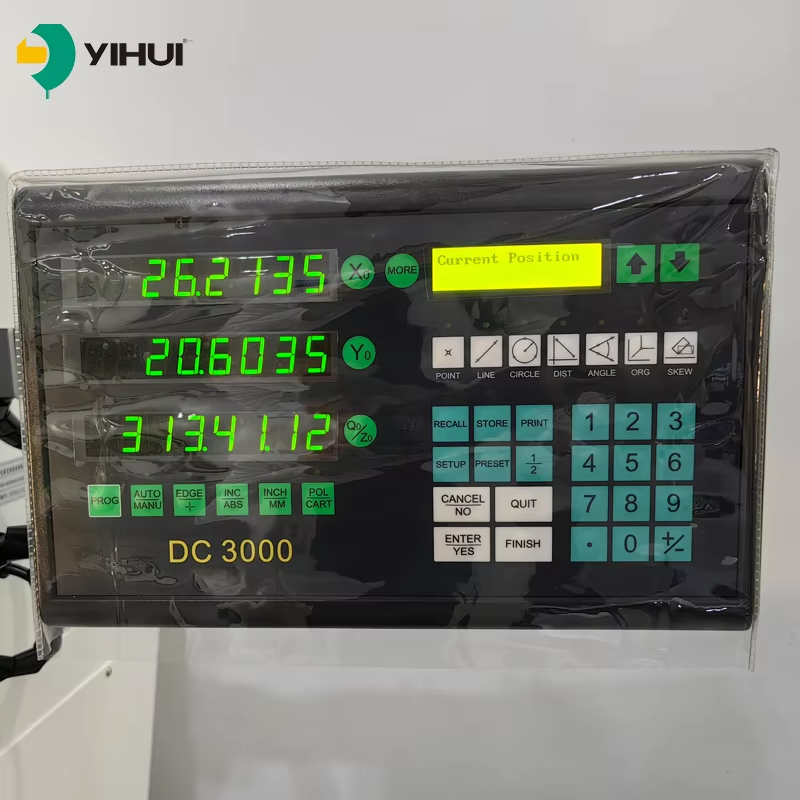

| DRO | DC-3000 Digital Readout, appearing in English, can be used to gather dimension data and measure point, circle, angle and distance, etc. | ||||
| Cooling | By three fans | ||||
| Illumination | 24V/150W halogen transmitted illumination, 21V/150W halogen reflecting illumination | ||||
| Power | 110V/220V(AC), 50/60HZ, Total Power Consumption 400W | ||||
| Dimension (L×W×H, mm) | 770×550×1100 | 780×780×1100 | 810×780×1120 | ||
| Weight (kg) | 180 | 190 | 200 | ||
| Option | Mini-printer, Edge detector, M2D software and so on, please refer to ‘Appendix’ for details. | ||||
About this supplier

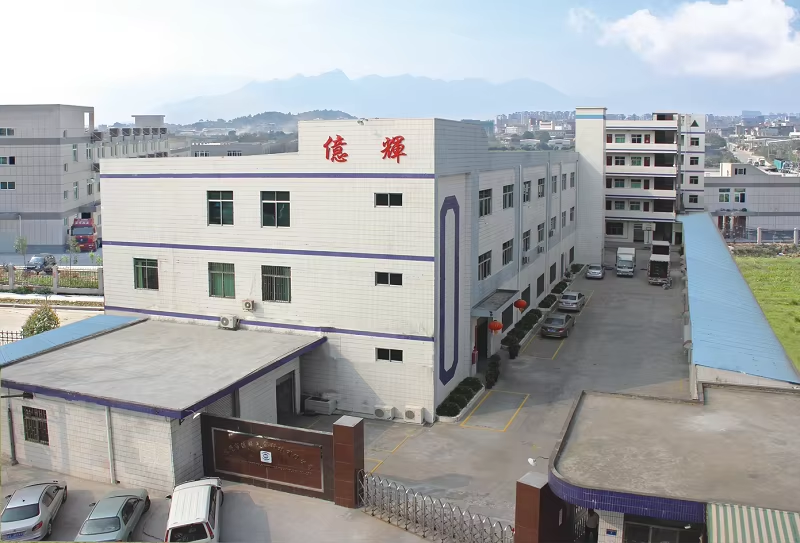

Dongguan Yihui Optoelectronics Technology Co., Ltd. Established in 2003, has 18-year experience in manufacturing optical instrument and 13-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mould, machinery,hardware, clocks, connectors, mobile and other industries. Until 2022, our products have been exporting to 54 countries over the world, and we have formal distributors in Chinese Taiwan, KOREA,IRAN, GERMANY and MALAYSIA.Customers from all over the world have been satisfied with our low cost, high efficiency, high quality metrology solutions.
Welcome to contact us for cooperation.
FAQs
We don't know much about the machine but we need it, how to decide which model is the best?
Please send inquiry to our Sales telling what you need the machine to do.And then our team will work out best solutions for you by sending catalogues, demonstration video or testing of your sample.
We want to protect our payment better, T/T is not accepted.Is there better way for business?
L/C, Paypal, Alipay etc. are available, we have many options for safe payment.
After machine arrival, what will be the service for installation and training?
If you are close to our local agent, you can contact them directly for spot service.Usually we will send our engineer for overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accomodation.If spot service is not feasible, we will arrange online instruction of installation and online training by means of e-mail,phone,remote control, meeting software etc.
