II. Features
1. It adopts 2.0MP color camera , high screen resolution, clearer image.
2. Digital measurement and data processing system are made up by the two coordinate’s studio, the grating scale and video card.
3. It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and make a full work circle. The measurement data also can be exported in Excel, Word to generate reports for statistical analysis.
4. Grade 00 granite base and column, high stability.
Product Description
I. Usage

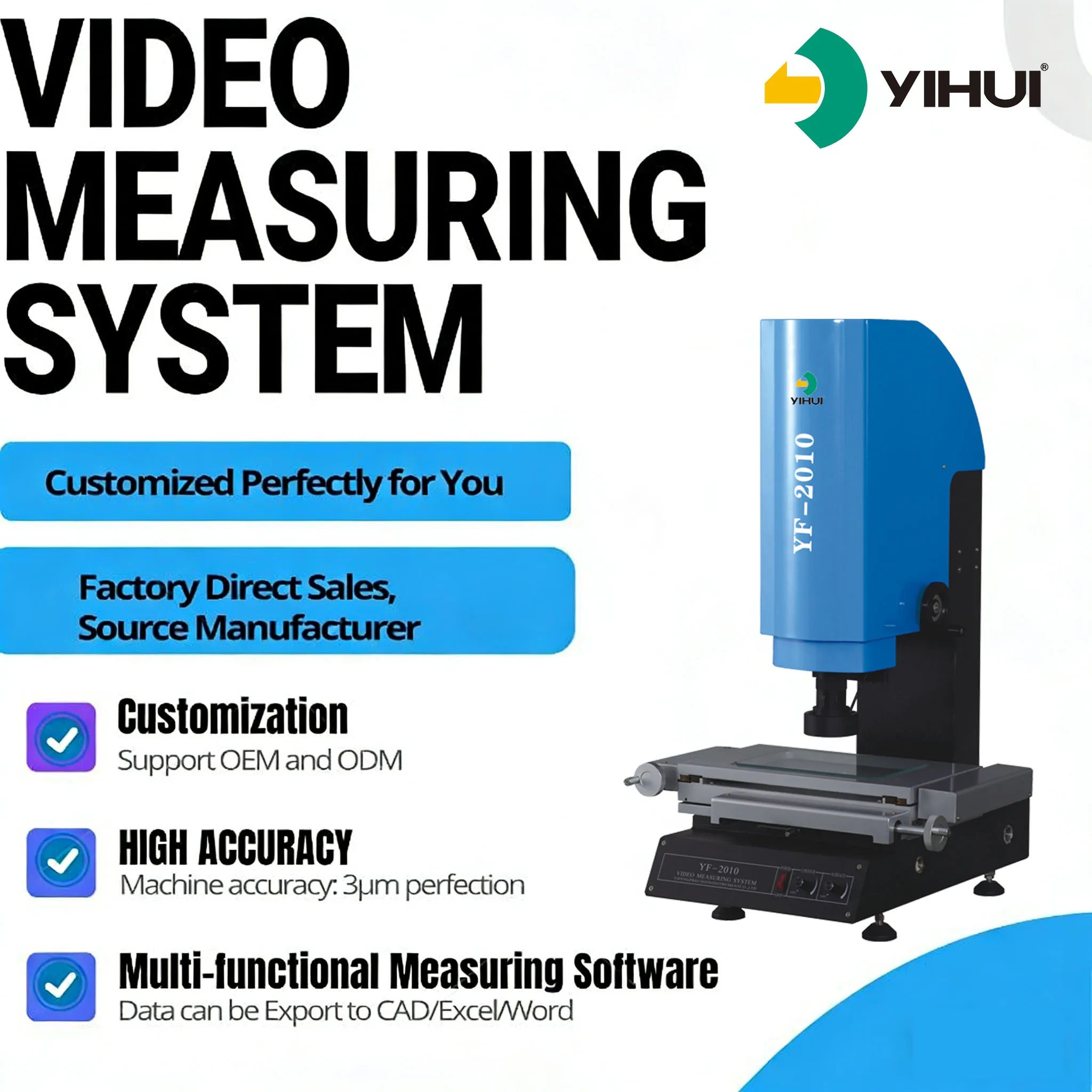

YF-F Series is the enhanced type manual Video Measuring System developed by DG-YIHUI.
It has been widely used in machinery, electronics, aerospace, automotive, mould, and other industries for precision measurement.
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness, flatness, perpendicularity, circular degree, coaxiality, etc.
3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
II. Features
1. It adopts 2.0MP color camera , high screen resolution, clearer image.
2. Digital measurement and data processing system are made up by the two coordinate’s studio, the grating scale and video card.
3. It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and make a full work circle. The measurement data also can be exported in Excel, Word to generate reports for statistical analysis.
4. Grade 00 granite base and column, high stability.

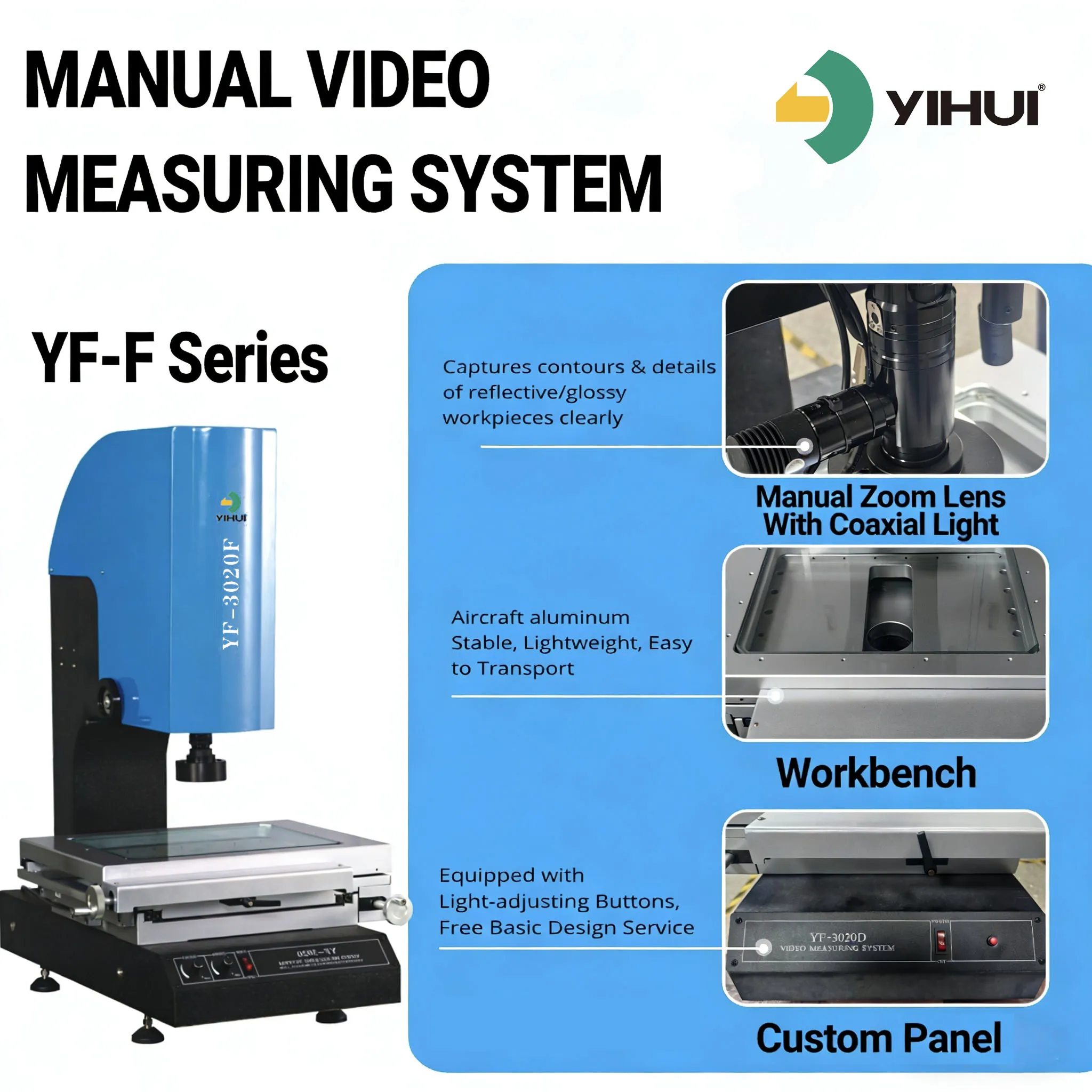

Structure
Specification
| Code | 04171… | 101 | 102 | 103 | 104 |
| Model | YF-2010F | YF-3020F | YF-4030F | YF-5040F | |
| Table | Metal Table Size (mm) | 404*228 | 500*330 | 606*466 | 706*606 |
| Glass Table Size (mm) | 260*160 | 350*280 | 450*350 | 550*450 | |
| X, Y Stroke(mm) | 200*100 | 300*200 | 400*300 | 500*400 | |
| Load Capacity | approx. 15 kg | approx. 20 kg | approx. 30 kg | approx. 35 kg | |
| Weight (kg) | 180 | 260 | 315 | 500 | |
| Dimension (L)*(W)*(H) | 556*540*860 | 670*660*950 | 720*950*1020 | 800*1040*1020 | |
| Measuring Targeting System | Camera: 1.3MP 1/2’' Color CCD Camera | ||||
| (Standard Accessories) |
Zoom Lens: Pomeas™ Manual Zoom Lens with Coaxial Illumination magnification: 0.7~4.5X WD: 92mm |
||||
| Video Magnification: 20~128X FOV: 7~1.1mm | |||||
| Scale Resolution: 0.5 μm | |||||
| Z-axis Stroke(mm) | Standard | 150 | |||
| Option | 200 | 200~350 | 200~450 | ||
| Accuracy E1* | Ex, y ≤(3.0+L/200) μm | ||||
| Accuracy E2* | Exy ≤ (4.0+L/200) μm | ||||
| Illumination | Surface light and transmission light adopt LED, brightness adjustable | ||||
| Power | 110/220V(AC), 50/60HZ 30W | ||||
Software
Packing & Delivery

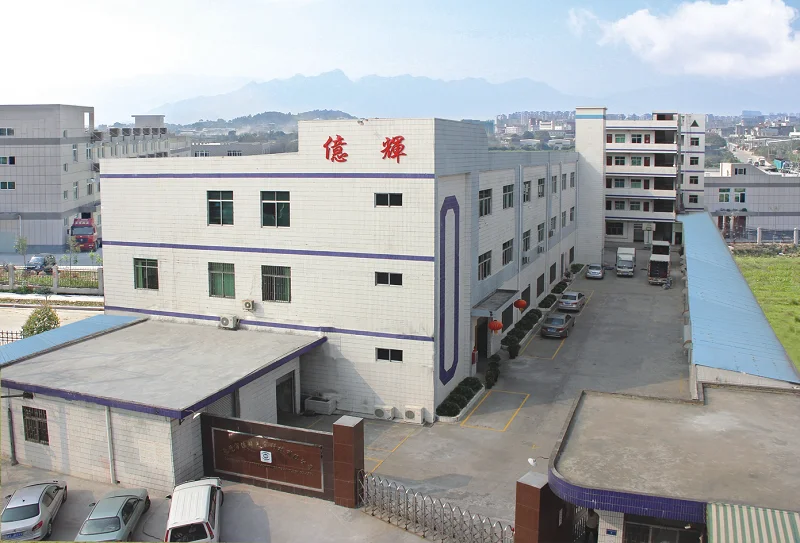

Company Profile
Dongguan Yihui Optoelectronics Technology Co., Ltd.
Established in 2003, has 22-year experience in manufacturing optical instrument and 17-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries.
Welcome to contact us for cooperation.
Certifications & Partners
FAQ
Q: We don't know much about the machine but we need it, how to decide which model is the best?
A: Please send inquiry to our Sales telling what you need the machine to do.And then our team will work out best solutions for you by sending catalogues, demonstration video or testing of your sample.
Q: We want to protect our payment better, T/T is not accepted.Is there better way for business?
A: L/C, Paypal, Alipay etc. are available, we have many options for safe payment.
Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service.Usually we will send our engineer for overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accomodation.If spot service is not feasible, we will arrange online instruction of installation and online training by means of e-mail,phone,remote control, meeting software etc.
