Horizontal Profile Projector 2D Image Inspection Equipment 0.003mm Accuracy 0.001mm Resolution 1 Year for Accurate Testing

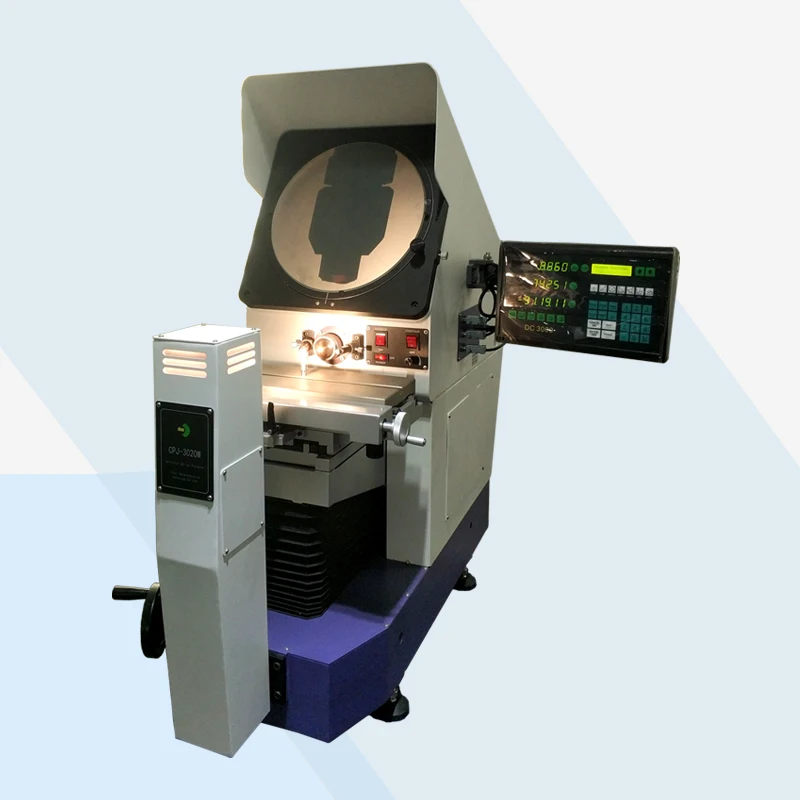

Horizontal profile projector CPJ-3020W is a photoelectric measuring system of high precision and efficiency can inspect all kinds of surface and outline of the complicated work pieces such as cam, template, tread, gear, perform willing cutter and so on. It requires in the checking department and workshop and is widely used in machinery, mould, tool, electricity and light industry.

Spu:

1601383467172

Introduction

Products Description

50X Lens Profile Projector Tools CPJ-4025W

I. Usage

II. Specification

Code		4175104

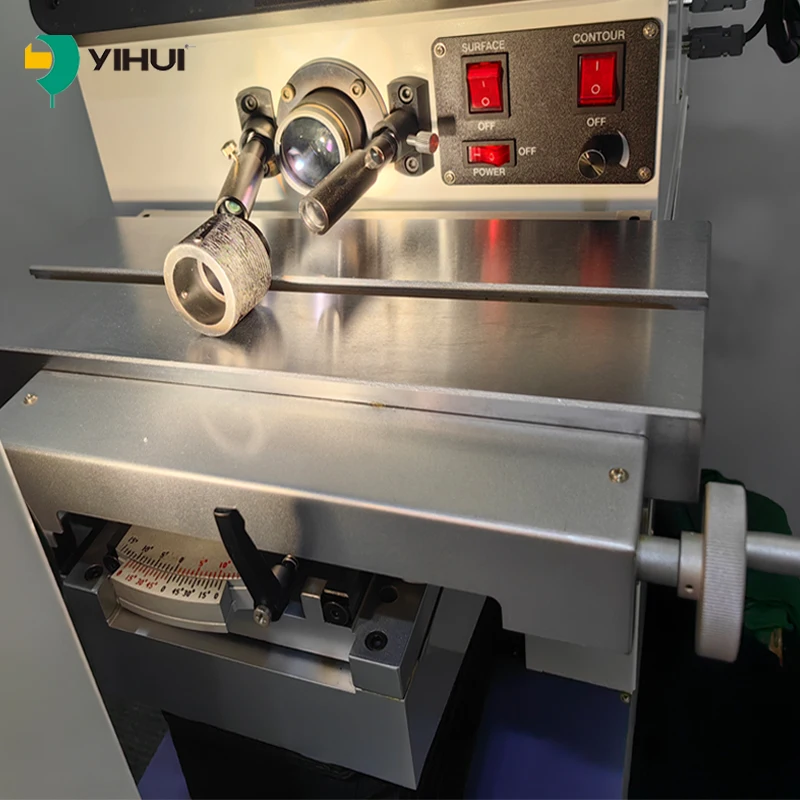

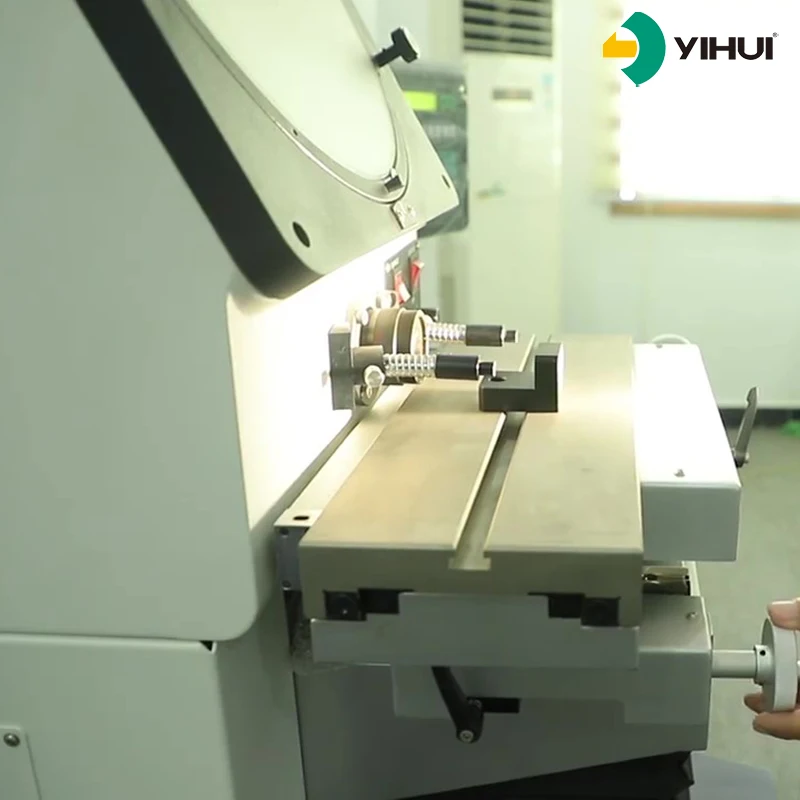

Working Table	Worktable Size(mm)	408*126
	X-axis Stroke(mm)	200
	Z-axis Stroke(mm)	100
	Y-axis Stroke(mm)	75 for focus
	Turning Range	±15°
	Resolution(X-axis, Z-axis)	0.5 μm
	Accuracy* (µm)	Ex, z ≤(3.0+L/200)
Dimension (LWH, mm)		1147556964
Weight (kg)		160

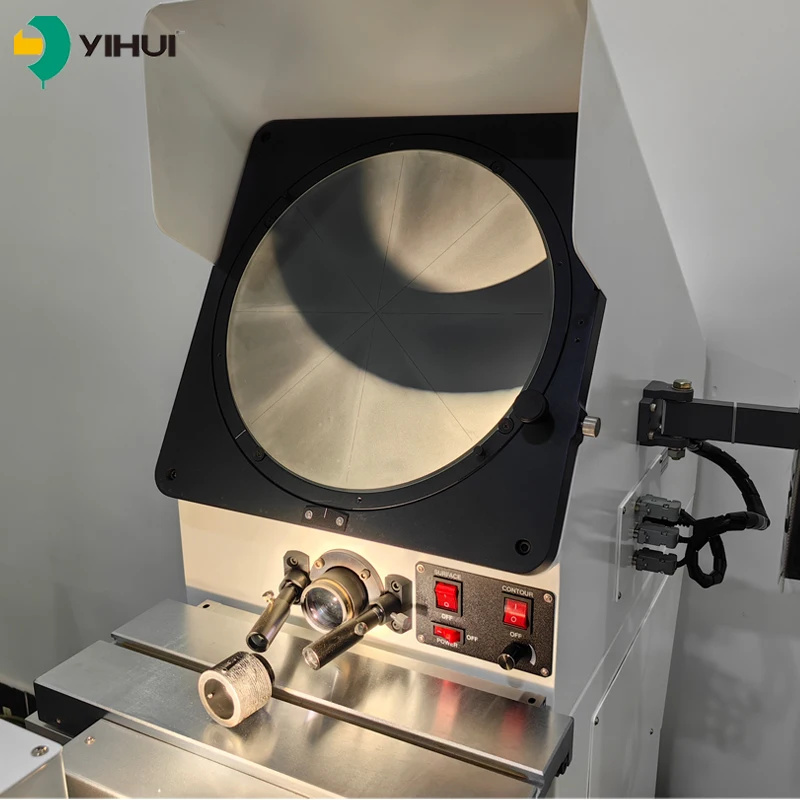

Projector screen	Projected Image	Reverse
	Screen Size(mm)	Ø330
	Screen Rotary Range	0°~360°
	Rotary Angle Resolution	1´ or 0.01°
	Projection Accuracy*	Contour: ≤±0.06%, Surface: ≤ ±0.06%
Lens	Magnification	10X (standard)	20X (option)	50X (option)	100X (option)
	Object View(mm)	Ø30	Ø15	Ø6	Ø3
	Working Distance(mm)	77.7	44.3	38.4	25.3
DRO	DC-3000 Digital Readout, appearing in English, can be used to gather dimension data and measure point ,line, circle, angle and distance, etc.
Illumination	24V/150W halogen transmitted illumination,
	21V/150W halogen reflecting illumination
Power	110V/220V(AC), 50/60HZ, Total Power Consumption 400W
Option	Mini-printer, Edge detector, M2D software and so on,
	Please refer to Appendix for more details.

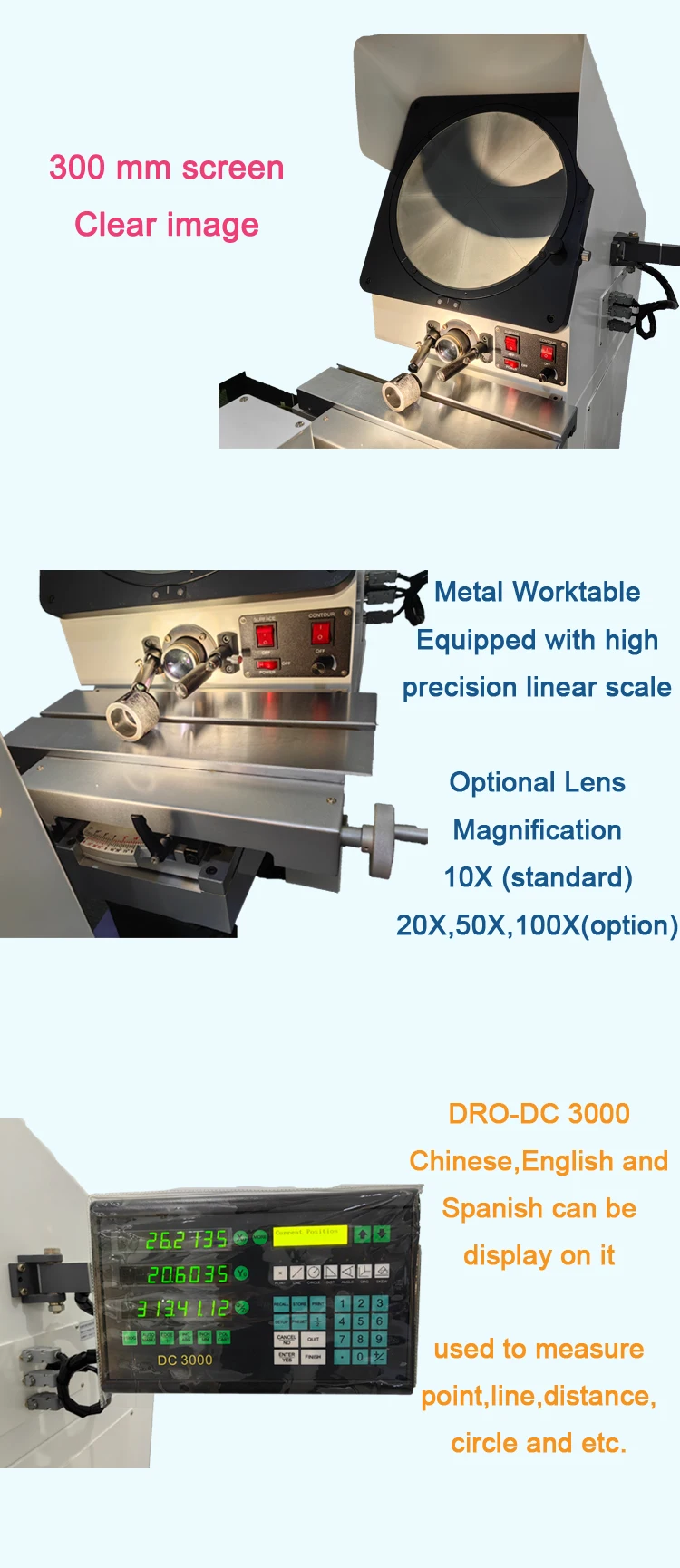

Structure

Part of the Digital Readout DC-3000

1. Two-dimensional measurement: measure width, length, both sides of the angle, the cone angle, the diameter of the cylinder,chamfering, straightness, roundness, cylindricity,

perpendicularity, parallelism, etc.

2. User program: sequences of front panel key-presses can be stored as programs and replayed at a later date. This capability is especially useful when a series of identical parts must be measured.
3. Communication: with RS232 interface and printer interface, can export measurement data with a mini printer or a computer equipped with metrology software.
4. 4. Measuring Unit: support mm or inch’
5. Language: Chinese, English, Portuguese.

Product packaging

Company Profile

Dongguan Yihui Optoelectronics Technology Co., Ltd.

Established in 2003, has 18-year experience in manufacturing optical instrument and 13-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries. Until 2022, our products have been exporting to 54 countries over the world, and we have formal distributors in TAIWAN, KOREA,IRAN, GERMANY and MALAYSIA.Customers from all over the world have been satisfied with our low cost, high efficiency, high quality metrology solutions.

Welcome to contact us for cooperation.

Customer Photos

Certificates

FAQ

Q: We don't know much about the machine but we need it, how to decide which model is the best?
A: Please send inquiry to our Sales telling what you need the machine to do.And then our team will work out best solutions for you by sending catalogues, demonstration video or testing of your sample.
Q: We want to protect our payment better, T/T is not accepted.Is there better way for business?
A: L/C, Paypal, Alipay etc. are available, we have many options for safe payment.
Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service.Usually we will send our engineer for overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accomodation.If spot service is not feasible, we will arrange online instruction of installation and online training by means of e-mail, phone, remote control, meeting software etc.
