High-Accuracy Measurement: Achieves precise 3 micron readings for critical applications.
Robust Design: IP65-rated for dust and water resistance, ensuring durability.
Powerful Performance: 400W motor delivers efficient and consistent measurements.
Product descriptions from the supplier
Highlights at a glance
High-Accuracy Measurement: Achieves precise 3 micron readings for critical applications.
Robust Design: IP65-rated for dust and water resistance, ensuring durability.
Powerful Performance: 400W motor delivers efficient and consistent measurements.
User-Friendly Interface: Intuitive software for seamless vision measurement operations.
Global Support: Available for customization and OEM/ODM requests.
III. Specifications
| Code | 047171... |

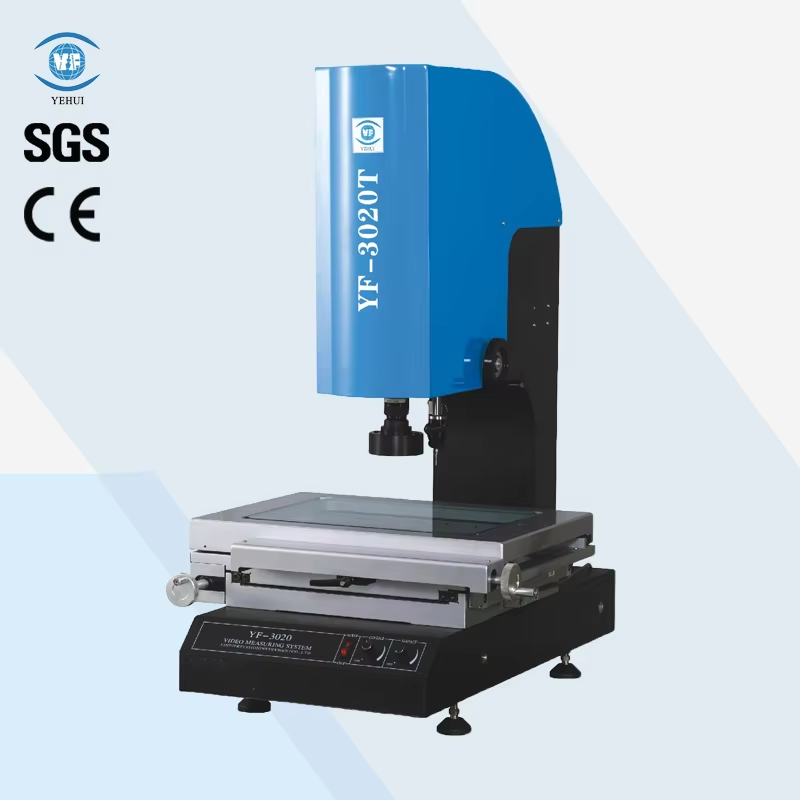

301 YF-2010T |
302 YF-3020T |
303 YF-4030T |
304 YF-5040T |
| Category | |||||
| Table | Metal Table Size (mm) | 404*228 | 500*320 | 606*466 | 706*606 |
| Glass Table Size (mm) | 260*160 | 350*280 | 450*350 | 550*450 | |
| Measuring Range (mm) | 200*100 | 300*200 | 400*300 | 500*400 | |
| Load Capacity | approx. 15 kg | approx. 20 kg | approx. 30 kg | approx. 35kg | |
| Weight (kg) | 180 | 260 | 315 | 500 | |
| Dimension (L*W*H, unit: mm) | 556*540*860 | 670*660*950 | 720*950*1020 | 800*1040*1020 | |
| Measuring Targeting System (Standard Accessories) | Camera: 1.3MP Color Camera | ||||
| Zoom Lens: Pomeas™ Manual Zoom Lens with Coaxial Illumination | |||||
| Magnification: 0.7X-4.5X, WD 92mm | |||||
| Probe: RENISHAW™ probe kit MCP | |||||
| Video Magnification: 28X-186X FOV: 7-1.1mm | |||||
| Scale Resolution: 0.5 μm | |||||
| Metrology Software | YH-3D™ | ||||
| Z Stroke (mm) | Standard | 200 | |||
| Option | 250-300 | 250-350 | 250-450 | ||
| Accuracy E1* | Ex, y ≤ (3.0+L/200) μm | ||||
| Accuracy E2* | Exy ≤ (4.0+L/200) μm | ||||
| Accuracy E3* | Ez ≤ (3.5+L/150) μm | ||||
| Illumination | Surface light and transmission light are used white LED, brightness adjustable | ||||
| Power | 110/220V(AC), 50/60HZ 30W | ||||
About this supplier
Dongguan Yihui Optoelectronics Technology Co., Ltd. Established in 2003, has 22-year experience in manufacturing optical instrument and 17-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries. Until 2022, our products have been exporting to 54 countries over the world, and we have formal distributors in KOREA,IRAN, GERMANY and MALAYSIA.Customers from all over the world have been satisfied with our low cost, high efficiency, high quality metrology solutions. Welcome to contact us for cooperation.
Company overview
Competitive advantages

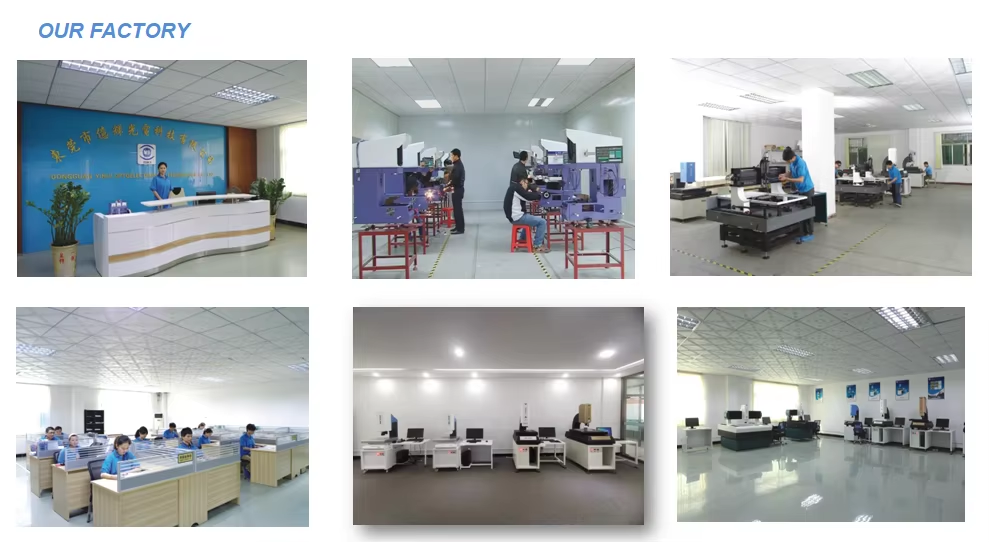

Factory profile
